#9839 - complete wet paint line, 24" x 48" opening

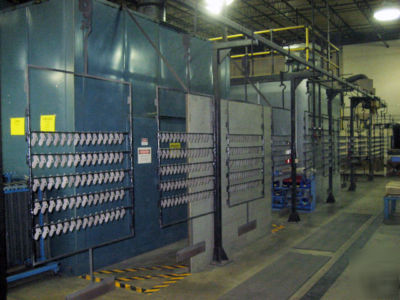

COMPLETE WET PAINT LINE, 24" X 48" OPENING WITH PAINT ROBOT, TRACK, WASH AND BAKE OVEN
The Fanuc P-145 paint robot is designed specifically for precision painting
The Fanuc P-145 is an electric AC servo motor driven robot that utilizes the
digital absolute pulse encoders for position control. The 6-axis robot

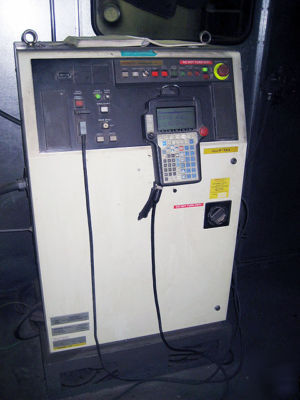

manipulator is mounted atop a stationary pedestal. A Fanuc System R-J3
controller controls each P-145 robot.
FANUC ROBOTICS CONTROLLER SOFTWARE:
The PaintTool application software package is designed to simplify and
standardize the set-up and operation of Fanuc robotics robots used in
6-Axis mechanical unit with hollow wrist
"B" Size R-J3 paint controller
PaintTool 100 software and documentation including
R-J3 Mechanical unit and controller

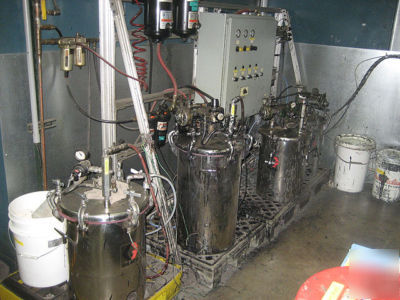

Husky 307 Diaphragm pump assembly for solvent flush
FSI Filter assemblies for teflon
Filter assemblkies for solvent flush
Air filter / Manifold assembly
Color / Auto flash change tree
10 Gal. Tank w/cover with agitator for teflon to include grounding strap
10 Gal. tank w/cover without agitator for solvent / water to include
Air logic control panel to control HVLP automatic spray outlet

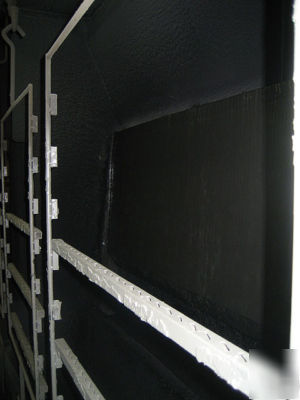

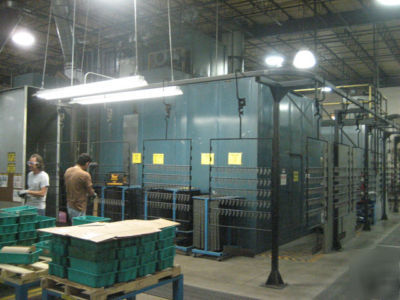

IFT CROSSFLOW, ENCLOSED PRESSURIZED, PUMP TYPE, WATER WASH CURTAIN,
Booth working dimensions: 10' W x 10' H x 12' Working depth
Approx. booth overall dimensions: 12' W x 10' 10" H x 19' 4" Overall depth
Conveyor openings: 24" W x 42" H
36" Heavy duty exhaust fan (11,400 CFM @ 3/4" s.p.= 100 FPM}
500 GPM heavy duty water pump with base and coupling guard
36" Exhaust ductwork for a 28 Ft. high flat roof to include:
- 8' Sections spiral duct with connecting rings on both ends
- 4' Sections spiral duct with inspection door and connecting rings
- Automatic roof ventilator stack heads with connection rings
Sheet metal construction formed with companion flanges punched on six
inch centers for bolted assembly.
inch centers for bolted assembly with 1250 SCFM exhaust
The De-ionizing air knife incorporates an air knife and ionizing bar

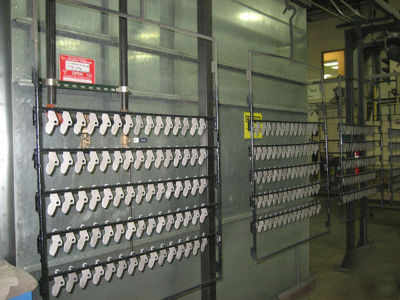

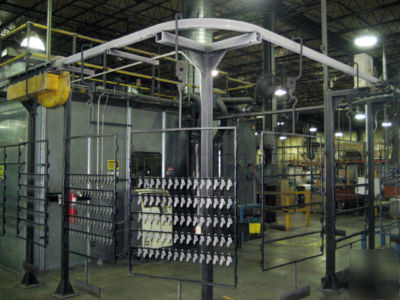

IFT INVERTED ENCLOSED CONVEYING SYSTEM:
Inverted enclosed track overhead indexing conveying system with
forwarding/reversing capabilites and variable speed drive

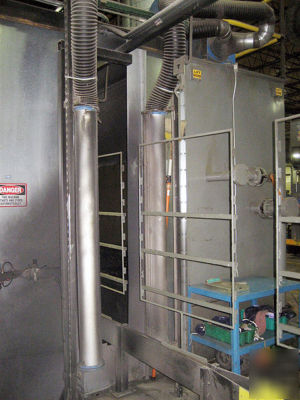

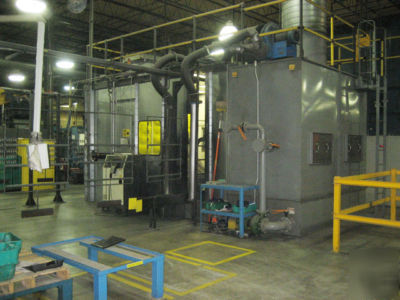

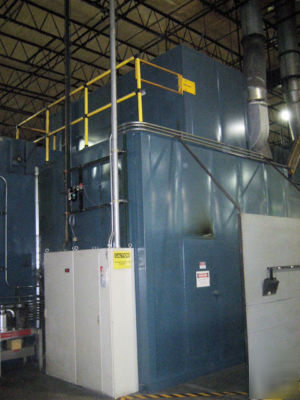

IFT TEFLON FINAL FULL CURE OVEN:
Direct gas fired convection curing oven designed for
maximum ambient operating temperatures of 475 Deg. F. The conveyor
has 4 passes inside the oven and allows for a 15 minute
drying cycle at the 4 fpm indexing conveyor speed.
Overall dimensions for the Oven: 12' 5" W x 11' H x 21' 2" L
The oven has 28,500 CFM of recirculating air capacity by
utilizing one (1) 28,500 CFM top mounted heater
One 2.0 million BTU per hour Eclipse AH-200
(1) Twin city RBO radial blade blower (or equal) rated at 3,000 CFM
(1) FT 16,000 CFM DIRECT FIRED GAS HEATED AIR MAKE-UP UNIT (ROOF MOUNTED)
16,000 CFM Direct fired gas heated air make-up unit (RAM-20) to replace the exhaust air from the paint spray booth
ROBOTIC FINISHING PLC SYSTEM CONTROLS:

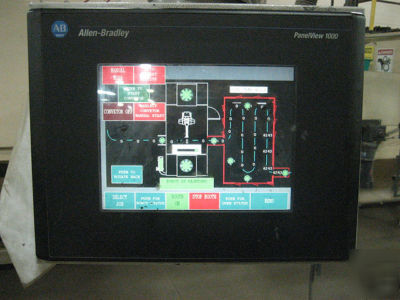

The Panel view 600 is the operator's window into the PLC control system.
Via the Panel view 600 the operator can auto-start or auto-stop thesystem or individual components, and start and stop individual subsystems.
