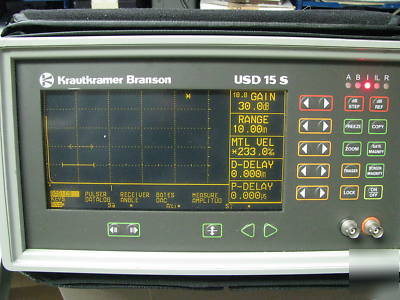

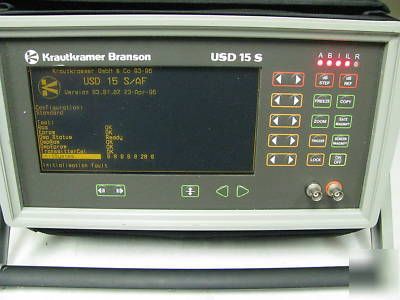

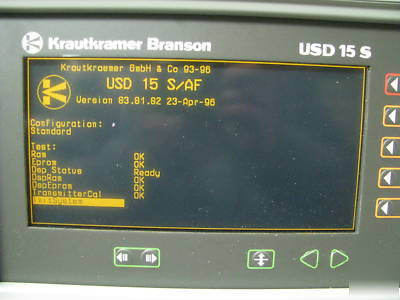

Krautkramer branson USD15S/a ultrasonic test system

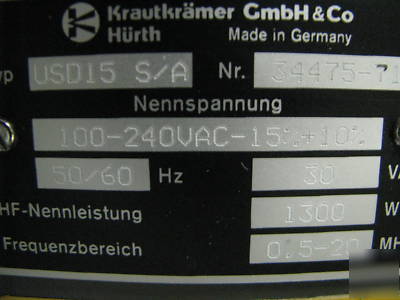

Kraukramer Branson USD 15 S/A NR 374475-71
Specific Product Information Available from GE: http:// /download/products/ut/fd/GEIT-20000-s-US_usd15.pdf
The KrautKramer Branson USD 15 S is a compact, state-of-the-art ultrasonic flaw detector. This user-friendly instrument is especially suitable for: locating material flaws, measuring material thickness, and automating NDI test systems.
* Easy operation with continuous control via Large electroluminescent display
* Selectable Pulse Repetition Frequency (PRF)
* Outputs updated with PRF for online data processing
* Tolerance monitor with alarm function
* Data Logger for storage and documentation of thickness readings
* Alphanumeric data set descriptor
Additional Technical Specifications
Square Wave Pulser with Variable Width and voltage
Large High Resolution 512X256 pixel, Electroluminescent 7.7" x 3.8" display
Thickness data logger with up to 1200 thickness readings
High/Low Thickness Monitor
100 Data Set memory including A-Scan storage with 8 character Alpha Numeric ID
Frequency Range from .3 to 20 MHz at -3 dB
Selectable Pulse Repetition Frequency (PRF) to 4 KHz in Hz incr.
8 Frequency Selections including Broadband
2 Monitor Gates including Interface Echo Gate Start
40 dB Dynamic Range Distance Amplitude Correction
Curved Gate Bar and time Corrected Gain
Selectable RF, Full wave, and Positive or Negative Halfwave Display
Digital Distance and Amplitude Measurement to all Gates
0 to 5 Analog output for Time of Flight and Amplitude for Each Gate or PRF
Trigonometric Flaw Location
A-Scam Compare; Inch, Millimeter and Microsecond Units
Damping Selectable in four Discrete Steps
Auto Recognition 90 Volt to 220 V 50/60 Cycle AC Operation
Master Slave Operation Externally Clickable
37 Pin Output Connector for all Gate & Timing Signals
Oscilloscope Compatible RF Output
High speed Data PC link (Requires Optional Computer Card)
