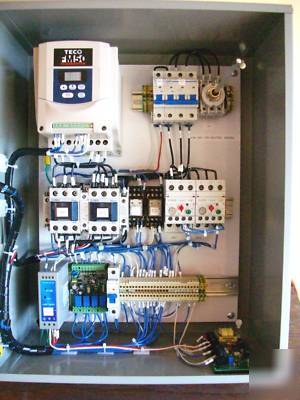

Interface controller panel (1X2) 1 to 5 hp
A.C. Interface Controller Panel typical for any multigroup motor control system.
To Handle Multiple Motor Controlling from 1-5 HP Maximum Capacity
Voltages as per order specific 230/380/460/515 VAC.
Standard Design Choices Includes
* (S-MTG) Single Motor Group Ctrl.
* (M-MTG) Multi-Motor Group Ctrl. (Up to 2 Operational Modes)
Custom Design Choices Includes
(M-MTG) Multi-Motor Group Ctrl. Multi-Choice (Call for a free quotation)
Applications for these Ctrl include.
* Distribution Center Boxes.
* Printing Press or Inserter Delivery (Newspaper or Commercial)
* Farming and Field Collection.
1- House Power. example of single and three phase choices.

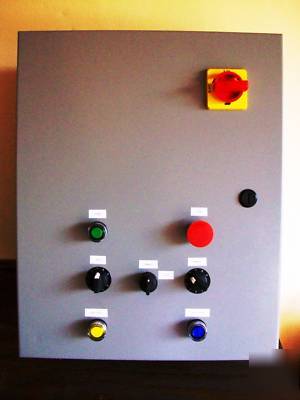

2- Functions for Operator Panel Interface.
* Stop (Specifications for Redundancy and Serial or Parallel Interface)
* Start (Specifications for Redundancy and Serial or Parallel Interface)
* Fault Indicator (In Multiple Motor Controls a Display is used to identify the location of the fault)
* Speed Control Features as needed example. Automatic Speed loop using Tach Generators or Encoder Reference Signals.
* Choices of Secondary Drive Backup up Control. Additonal Fee apply for 2x2 S-MTG Controller.
3- Desire Operational Control Platform
4- Qty of Desire motors for Control.
5- Remote Operation Capacity if required for multiple Operator Stations
* (Additional Fee per Station)
* Following a Tach Generator (AC or DC) specify Voltage.
* Encoder SPD Reference Signal (Existing) if needs to be added to existing equipment, consult us for a free quotation.
* 0-10 VDC SPD Reference (Existing) if needs to be added to existing equipment, consult us for a free quotation.
2 years on all components and parts
These calculation will have ot sized as per Contractor Local Electrical code for the area.
* Drive Ctrl Program License
* Wire Run List (Suggested Field Wiring)
* Operational Manuals (Available in English/ Spanish/ Portuguese) as per Request)
* (1x2) 1-5 HP (Single Motor Group Output) up to 5HP capacity.
* 220 VAC/ 3PH Input Required with 40 FLA House Power Capacity
* Start/Stop Control (w/ Redundancy)
* Support during and after installation by 24x7 Controllers Team.
* Maintenance Contracts for Specific Applications that required monthly tuning or calibrations.
In our designs we have choices for:
* S-MGT (Single Motor Group) with Auto/Manual Selector.
* M-MTG (Multi Motor Group) with Auto/Manual Selector. Contact us for a Quotation @ ****@bellsouth.net
* M-MTG ((Multi Motor Group) with Auto/Manual and Auto Route Conveyor Changer. Contact us for a Quotation @ ****@bellsouth.net
Also, we specialized in Automatic Traffic Control items for special request.
Please contact us for further inquires at ****@bellsouth.net
We need specific information concerning your control needs, consultation if free, your questions are always welcome
Our products carry a warranty of 2 years for parts
For special project we offer very inexpensive installation packages including our Field Service Engineers quotation TBD depending on Location and Project duration,
Contact us for a Quotation @ ****@bellsouth.net
