Chick one-lok single station cnc vice

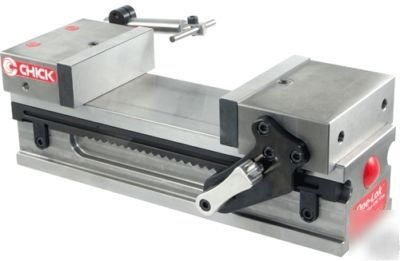

Chick One-Lok Single Station CNC Vice
No more knuckle scraping! With Chick s BoltFast jaw system, soft and hard jaws can be changed with a single turn of the locking screw while providing repeatability of better than 0.0008 (0.02mm).
Fixed Jaw Deflection Virtually Eliminated
The CNC Vise is engineered to apply squeeze clamping, which allows up to 10,000 lbs. of holding force.
Unique in the industry, the One-Lok s hardened, precision-ground, cast iron base is a solid working surface. No open ways means you ll never have to fish out small workpieces or clean chip build-up from inside the CNC Vise.
The moveable jaw may be unlocked to slide forward or back for rapid set-up. No speed handles needed!
Advatages of the One Lok vise over conventional vices
Squeeze clamping minimizes deflection.
The QwikSlide moveable jaw opens and closes in seconds.
BoltFast jaw system changes over in seconds with excellent repeatability.
Delivers consistent part placement across multiple users and a wide range of holding forces.
Saves valuable time on expensive CNC machines with the ability to make rapid workholding adjustments.
Makes more parts with less frustration change jaws in seconds with better than 0.0008 repeatability.
Using a One-Lok (instead of a knee mill vise) will save a typical job shop at least three hours per week. Based on a $60 hourly rate, each One-Lok in your shop will help you save $180 a week which adds up to $9,360 a year.
The One-Lok s BoltFast Jaw System holds like a bolt only better. We ve designed a unique new way to change jaws quickly without sacrificing accuracy. Slider interface pulls the jaw down into the base while squeezing the jaw plate and fixed jaw together. The accurate locating pin repeats to within 0.0008 .
Please click here for dimensional data
Please click here for operating instructions
