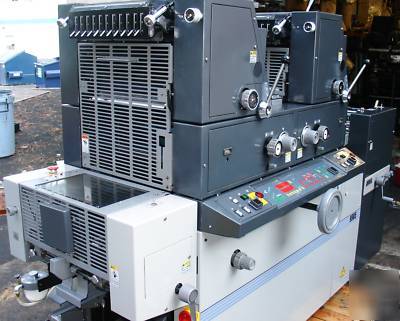

Ryobi 3302 2/c w/kompacs ir dryer 2004
Paper Size (Max.) 340 x 450mm (13 3/8 x l7 3/4")
Paper Size (Min.) 90 x 130mm (3 1/2 x 5")
Paper Thickness 0.04-0.3mm (0.0016-0.012")
Printing Area (Max.) 330 x 438mm (13X 17 1/4")
Printing Speed 3,000-10,000 sheets per hour
Plate Size 335 x 485mm (13 3/16 x 9 3/32")
Plate Width (Max.) 352 mm (13 27/32")
Plate Clamp Type Straight edge clamp with plate positioning pins
Blanket Size 330 x 496 x 2.5mm (13 x 19 1/2 x 0.098")
Paper Feed System Universal feeder
Feeder Pile Capacity 440mm (17 5/16")
Paper Delivery System Chain delivery
Delivery Pile Capacity 510mm (20")
Registration System Push guide
Number of Rollers Ink rollers: 16 (form rollers: 3) Water rollers: 5 (form roller: 1) [two sets, one for each unit]
Vertical Image Adjustment (Max.) 20mm (3/4")
Power Mono-phase 200V 50/60Hz 12.5A, 208V 50/6OHz 12A, 220V 50/60Hz 11.5A or other voltages Three-phase 200V 50/60Hz 8.5A, or other voltages
Motor Wattage Main drive: 1.5kW Pump:(mono-phase) 550W,(three-phase) 750W
Dimensions (L x W x H) 2,200 x 965 x 1,560mm (86 3/4 x 38 x 61 1/2")
Net Weight 1,260kg (2,780 lbs.)
ANY QUESTIONS CONTACT JAY@(***)-580-7200
