Honeywell plug-in purge timer # S427D-1163

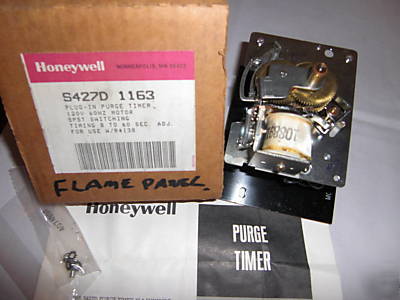

Honeywell Plug-In Purge Timer # S427D-1163
Unused surplus part in original box w/information sheet and mounting screws
The S427D purge timer is a synchronous motor driven automatic resetting timer designed for use with flame safeguard programmers.
Use with R4138A, FSP2000 Series and the FSP2100 Series or W787 Flame Safeguard Controls. Not intended for general applications.
* Max. power input: 6.5 watts
* Timing periods: 8 to 60 seconds, adjustable
* Timing marks are accurate at 60Hz voltage, for 50 Hz, timing is 20% greater then indicated
* Ambient temp. range: 0-150 F
