Bird model 4391A thruline(c) digital rf wattmeter kit
Bird Model 4391A 4391M Digital Thruline Wattmeter
Peak and Average, VSWR Display
Bird Termaline 100W 50 Ohm RF Load
Hardshell Foam Padded Bird Carry Case
Specify Type N or UHF (SO-239) connectors in the comment field during checkout. Type N(F) connectors are standard.
4391M Thruline RF Power Analyst 0.45 MHz to 2.5 GHz (elements sold separately). 100 mW to 10 kW. Uses the same plug-in elements as the Model 43. PEP/AVG, Dual element, LED, Portable Wattmeter. Bright LED Display, Long-stroke keyboard and range switches. Built-In 110V/220V AC Power Supply and Charger.
* Bird 4391M Thruline RF Wattmeter
* 250 KHz - 2.5 GHz (elements not included)
* 100 mW - 10,000W (elements not included)
* Bird 8164 100W RF Load N(M)
* Elements not included and are sold separately

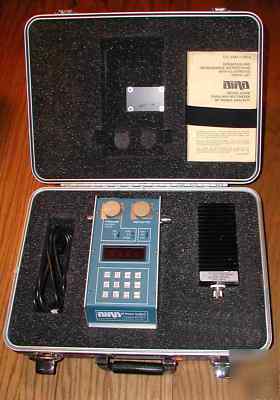

The Model 4391A is a Rugged RF Power Analyst that monitors Peak Pulse Power, Peak Envelope Power, or CW Power during normal equipment operations in the forward or reflected direction. Designed for air navigational aids DME, ATC and other pulsed RF systems such as telemetry, radar, commandand control, etc. Package includes Wattmeter, RF Load, rugged HD carry case, 117 AC Power cord and manuals (as pictured). 4391M is military ruggedized version of the 4391A.
Bird Model 4391A Specifications
