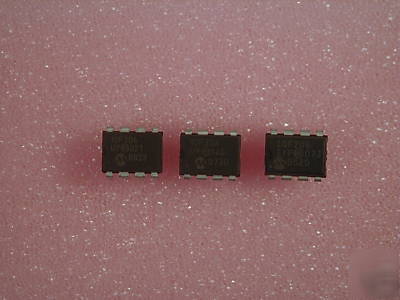

Microchip pic 10F206 8-bit flash microcontroller 8 pin
Only 33 single-word instructions to learn
All single-cycle instructions except for program branches, which are two-cycle
Direct, Indirect and Relative Addressing modes for data and instructions
8 Special Function Hardware registers
4 MHz precision internal oscillator:
In-Circuit Debugging (ICD) support
Watchdog Timer (WDT) with dedicated on-chip RC oscillator for reliable operation
Wake-up from Sleep on pin change
Low-Power Features/CMOS Technology:
Low-power, high-speed Flash technology:
Wide operating voltage range: 2.0V to 5.5V
Peripheral Features (PIC10F200/202):
- 3 I/O pins with individual direction control
- High current sink/source for direct LED drive
8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler
Peripheral Features (PIC10F204/206):
- Internal absolute voltage reference
- Both comparator inputs visible externally
- Comparator output visible externally
The device is an 8-pin Dual-In-Line package.
This device MAY be CMOS, therefore it may be static sensitive.
