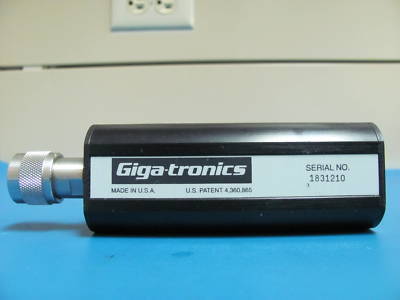

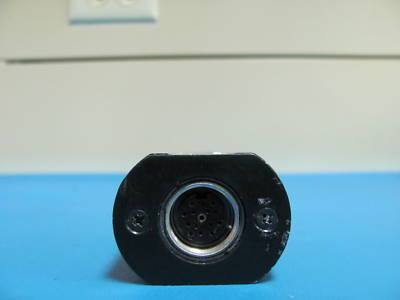

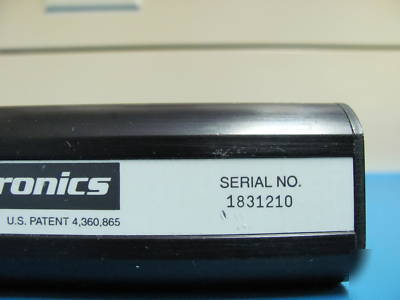

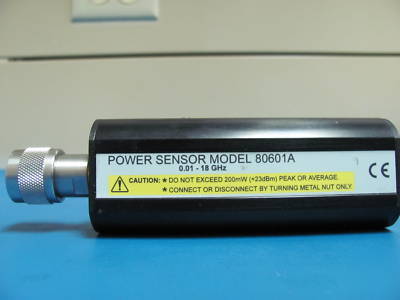

Gigatronics power sensor 80601A 0.01-18 ghz +23 dbm
The Giga-tronics 80600A Series Modulated Power Sensors provide bandwidth up to 1.5 MHz to measure the peak and average power of CDMA signals
This Giga-tronics Power sensor 80601A is guaranteed to work and comes with our promise to perform up to specifications.
http:// /downloads/datasheets/8540Cds.pdf
* Frequency Range: 10 MHz to 18 GHz
* Power Range: -67 to +20 dBm, CW
* Maximum Power: +23 dBm (200mW)
* Power Linearity: -67 to 20 dBm: 0.00 dB
-20 to + 20 dBm: 0.05 dB/10 dB

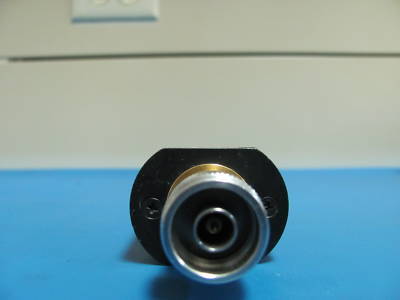

* RF Connector: Type N(m) [50 ]
