Allen-bradley 12MM photoswitch #42CF-D1LPA1-D4

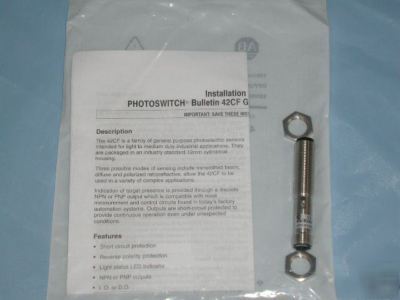

Allen-Bradley 12mm Photoswitch #42CF-D1LPA1-D4
Unused surplus item still sealed in package
The 42CF is a family of metal body photoelectric sensors intended for heavy duty industrial applications. They are packaged in a rugged 12mm cylindrical housing.The 100mm diffuse sensor features remote and local teach options which allow optimum sensitivity and hysteresis
settings for specific applications. Target presence status is provided through a discrete PNP output which is compatible with most control circuits found in factory automation systems. Outputs are short-circuit protected to provide continuous operation even under unexpected conditions.
* Emitter LED: Infrared 880 nm
* Sensing Mode: Standard Diffuse
* Operating Voltage / Supply Current: 10-30 VDC, 30 mA
* Sensing Distance @ 1X Margin: 0-100 mm (3.9") Adjustable
* Output Energized: LO / DO Selectable
* Output Type / Capacity / Response Time: PNP / 100 mA / 1.25 mS
* Max. Leakage Current: <10 A
* Connection Type: 4-Pin DC Micro QD
