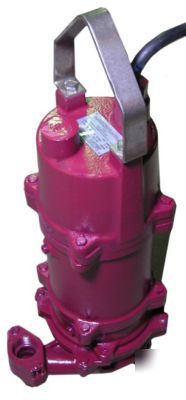

2 hp 230V grinder sewage pump internal start components
The MDI grinder pumps easily handle residential, light commercial or industrial sanitary waste, reducing it to fine slurry. The G2-21SI pump is designed for use in pressure sewer applications or any piping network.
The recessed vortex impeller design of the G2-21SI grinder pump provides trouble free, non-overloading operation over the entire performance curve. The G2-21SI pump produces capacities to 43 gpm with heads to 106 feet.
The modular design provides quick access to the internal start capacitor kit. Hardened stainless steel grinder assembly and many quality features.
Some of the other G2-21SI series pump features:
* Strong, 2 HP, 200/230 volt motor
* Internal start component (no control box req'd)
* 27.5 x 8.25 x 10.75 with 1.25" NPT Removable Discharge Flange
G2-21SI - Features and Benefits
1. Triple Sealed Cable Entrance
Stainless steel strain relief cord grip with compression grommet protects outer cord jacket. Epoxy filled inner cord cap with individually soldered wires provide anti-wicking moisture protection to the motor even if power cable is cut or damaged.
Start / Run capacitor with relay securely positioned in dry compartment. Rubber compression grommet for wire leads to motor prevents oil from entering chamber. 4 bolts quickly removes cord cap for easy servicing.
Commonality of parts across the pump product line minimizes the amount of parts required for servicing. Heavy duty ASTM A48, Class 30 cast iron components.
High torque for powerful (208/230v) and reliable pump operation. Pressed stator securely holds motor and efficiently transfers heat. Class F insulation with overload protection in oil filled chamber for cool operation and long motor life.
Motor / Pump shaft securely held with upper and lower ball bearing plus addition sleeve bearing in lower seal chamber. Long 50,000 hour B-10 bearing life.
6. Double Mechanical Seal Protection
7. Non-Overloading Hydraulic Design
The recessed centrifugal impeller allows 100% performance curve operation from shut-off to maximum flow without damage to the pump or system. The recessed vortex impeller is out of the passageway of fluid flow, eliminating concerns of blockage or wear.
Hardened (Rockwell 56-60) stainless steel grinder assembly has 30+ years proven field experience. The reversible grinder ring and grinder impeller effectively reduces solids into a fine slurry, easily passable in a piping system without concerns of clogging. Highly efficient 16,600 cuts per second.
Removable 1-1/4" NPT connection flange for simple and easy connection to discharge piping.
Stainless steel lifting handle and anti-vibration rubber mounting feet are included with the pump.
Internal Start Pump Section View
Discharge: 1-1/4" NPT Vertical
Impeller Type: Recessed Vortex
Start Capacitor: 150 mfd, 250 volt
Run Capacitor: 30 mfd, 370 volt
Rated Power: 208/230 volt, 1-Phase
Pole / Rate Speed: 2 Pole / 3450 RPM
