> Sumitomo type-39 fusion splicer **usa model**#
Sumitomo type-39 fusion splicer **usa model**#
2 Year USA Factory Warranty !!
voiding the Sumitomo warranty and right of repair. It does impact the specifications/ performance ,
(WE TAKE TRADE-INS. IF YOU HAVE ANY EQUIPMENT YOU NO LONGER USE, TAKE IT OFF THE DUSTY SHELFAND TURN IT INTO A CASH TRADE-IN)

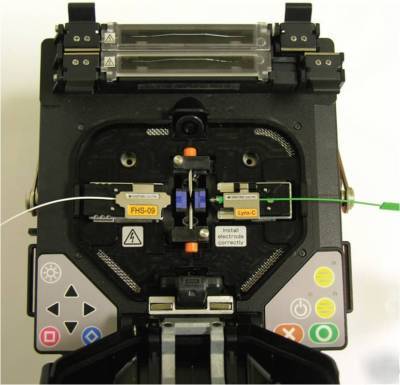

Sumitomo s Type-39 FastCat Core Alignment Fusion splicer is the industry s first splicer to feature a Dual-Automatic Heater System featuring Auto Start Heater and Auto Start Splice functions making the FastCat the fastest splicer available today. The Type-39 FastCat's advanced electronic design, which accommodates the built-in dual heating system and simultaneous operation, reduces the bottle neck of "heater wait time" by 88%. With an individual heater cycle time of only 30 seconds (60mm Fiber Protection Sleeves) and a splice cycle of only 9 seconds, the FastCat improves splicing efficiency by 70%.
Type 39-KIT-2 Components: Includes the Above; Plus Jacket Remover (JR-M03), Precision Cleaver (FC-6M-C)
Type 39FH-KIT-2 Components: Includes the Above; Plus 250 m and 900 m Fiber Holders
Dual Independent Splice Protection Heaters
5.6" Switchable Color Monitor for Front to Back or Back to Front Operation
Automatic Splice and Heater Start
Automatic Fiber Profiling Detection
Complete Splice in Less than 40 Seconds
Built-In LED for V-Groove Illumination
User-Friendly Menu Selection System
Easier to Load Fiber Holder Unit(Type-39FH)
Splice-On Connector Compatible (Type-39FH)
24-Hour Technical Support via 888-SPLICER
This unit is size, in inches, is 5.9W x 5.9D x 5.9H, with a weight of only 6.2 pounds, the standard battery is enough for 200 splices & heater cycles
...and it has wind protection of up to 30 MPH
RoHS - Compliant (engineered to be more environmentally friendly)
Fiber Requirement - Silica Glass
Coating Diameter - 100 to 1000 m
Cladding Diameter - 80 to 150 m
Cleave Length - 8 to 16 mm (under 250 m coated fiber) 16mm (over 250 m coated fiber)
Typical Splice Loss, Identical Fibers - SMF: 0.02dB MMF: 0.01dB NZ-DSF: 0.04dB
Number of Fiber Profiles - 48 Customizable
Number of Pre-Installed - 20 Customizable Heater Profiles
Internal Splice Data Storage - 10,000
Monitor Position - Multiple Position Monitor
Interface - USB Port for PC Interface RCA Jack for External Monitor DC input for Car Battery Operation
Dual Independent Heaters - Each Heater: 25 seconds 40mm sleeve + 30 seconds 60mm sleeve
Typical Splice Time - 9 Seconds Splice Cycle Time
Arc Test - Automatically Compensates for Environmental Conditions
Menu Selection - User Friendly Menus
Proof Test Internal - 200g (Std.), 400g (Optional)
Attenuation Splicing - Up to 15dB in increments of 0.01db
Loss Estimation Process - High-resolution Direct Core Monitoring (HDCM)
Image Display - Dual or Single Fiber Imaging X/Y
