New philips lph-9135 1.5" lcd module cstn
Brand new screen, still packaged in the factory bulk box!
We have many of these and similar CSTN screens available. These would be perfect for any project requiring a miniature display!
Built in COG (Chip on Glass) Controller
This unit has a Leadis LDS183 controller. Datasheet is available from us!

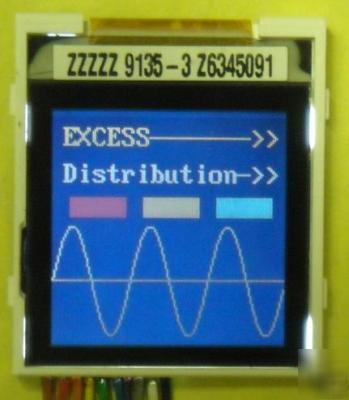

We have connected the screen to our Parallel port for the picture shown. Some source code is available to manipulate the screen this way.
Please contact us for quantity orders!
More detailed information below:
Outline dimensions 35.8 X 41.65 X3.55 mm
Display Resolution: 128 x 128 pixels
Dot Size (RGB subpixel): 0.06 x 0.2 mm (W x H)
Active Display Area: 26.87 x 26.87 mm (W x H)
Viewing Area: 30.45 x 30.50 mm (W x H)
Outline Dimensions panel 32.85 x 37.95 mm (W x H)
