6303 tos model 2UD universal id/od cylindrical grinder

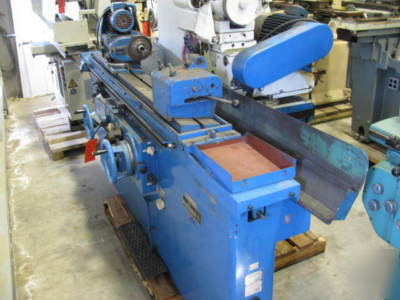

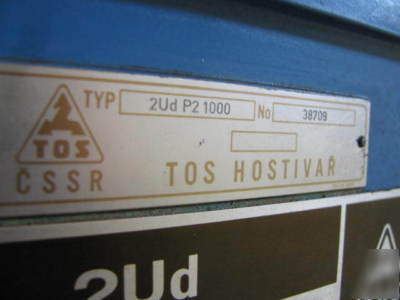

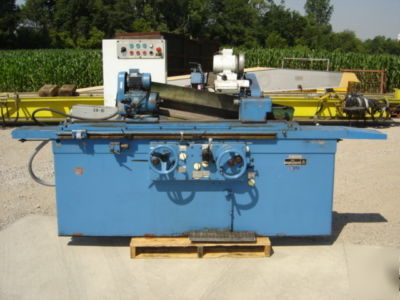

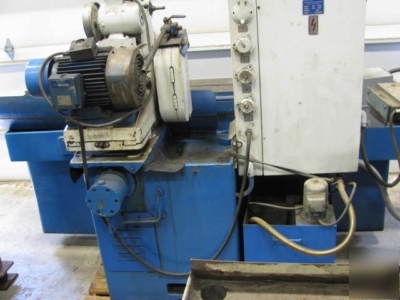

TOS Model 2UD 11" x 40" Universal ID/OD Cylindrical Grinder
Maximum diameter of swing 11.4"
Maximum distance between centers 40"

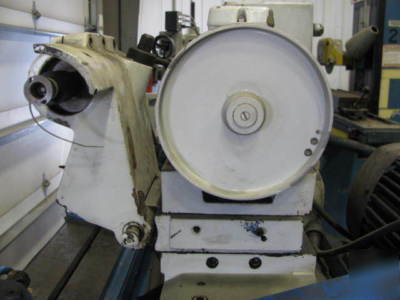

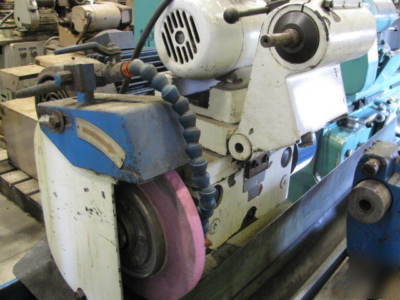

Grinding wheel 14" dia 2" width 5" bore
Taper in bore of work spindle 3 morse
Taper in bore of tailstock barrel 3 morse
Swivel of table to either side 6
Approx weight of the machine 5300 lbs
Max longitudinal travel of table 40"
Length of cross traverse of wheel head 7"
Adjustability of wheel head on its slide 8-5/8"
