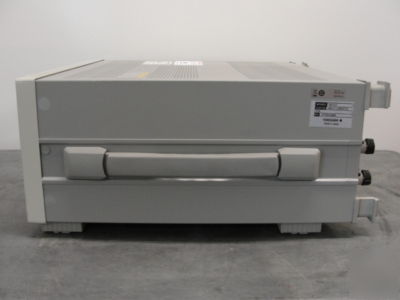

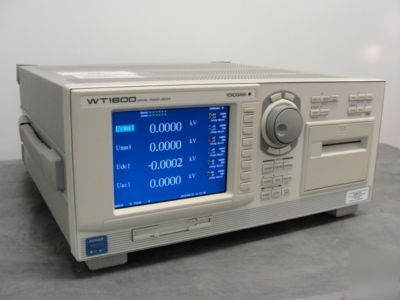

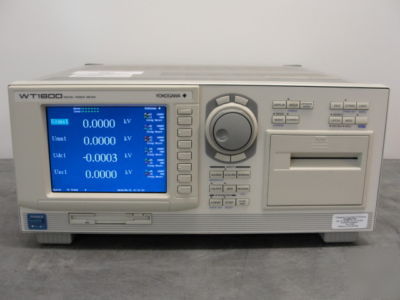

Yokogawa WT1600 model 76101-06 digital power analyzer
The Yokogawa WT1600 Power Meter is designed for measurement of extremely small currents in energy-saving equipment, as well as measurement of large currents for evaluating large-sized loads. The WT1600 works with voltages ranging from 1.5 V up to 1000 V, supporting a wide range of applications. Because it can accept signal inputs for up to six phases, a signal WT1600 unit can measure I/O signals on inverters. Lead and lag are detected correctly when the voltage and current signals are both sine waves, the lead and lag amplitude is greater than or equal to 50% (or 100% for crest factor 6) of the measurement range, the frequency is between 20 Hz to 1 kHz, and the phase angle is (5 to 175 ) for 50 A input element.
Features of the Yokogawa WT1600 include:

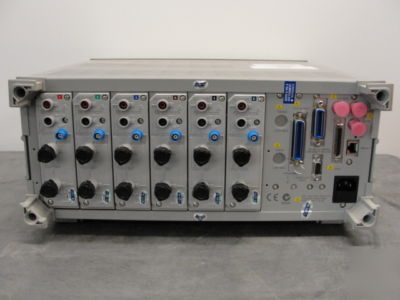

* Up to Six-Phase Input on One Unit. Synchronized Measurements Between Two Units
* Data Storing as Fast as 50 ms (20 Times per Second)
* High Precision and Wide Bandwidth
* Increased Assured-Accuracy Range for High-Precision Measurements

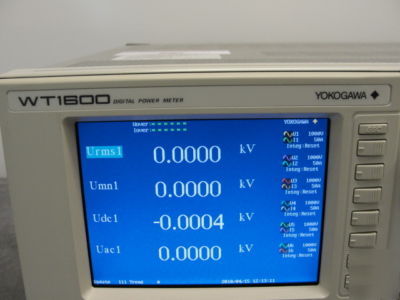

* A Variety of Display Formats
* Display Harmonic Data as Bar Graphs, Vectors, and Lists

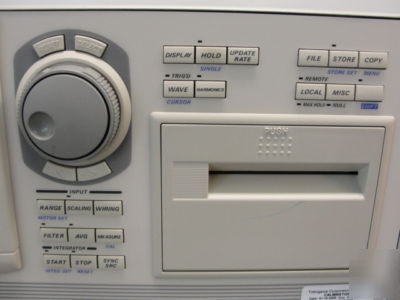

* Built-in Printer (Optional)
* A Variety of Interfaces (Optional)
* Many other optional features
*Unit has been tested to meet all operational standards - CALIBRATION AVAILABLE!
This YOKOGAWA WT1600 Comes with the following Options:
*Power cord, manual, and all standard accessories available!
This unit is also available for RENT - Please call (***)806-6600 to rent this item.
