Opto 22 quad pak 4-channel dc input module #IDC5BQ

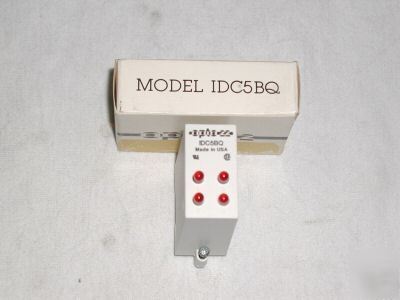

Opto-22 Quad Pak 4-Channel DC Input Module #IDC5BQ
* Quad Pak modules contain the equivalent of four, single channel I/O circuits in a single high-density package. Each Quad Pak module can be divided into two pairs with each pair sharing a common connection. The Quad Pak modules are designed to plug into the Quad Pak high-density I/O mounting racks only and cannot be plugged into single channel racks. Quad Pak modules are designed to work with a 5 VDC logic voltage only and can be used with Optomux, Pamux, and Mistic protocol brain boards and mounting racks as well as racks using a direct cable connection to a computer.
* DC input modules are used for sensing ON/OFF DC voltage levels. All DC input modules, with the exception of the IDC5BQ,
are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free clean switching. The IDC5BQ module is a fast-switching input module for signals produced by photoelectric switches, encoders, DC proximity switches, or TTL devices. Each module provides up to 4,000 Vrms of optical isolation between field inputs and the logic side of the circuit.
* Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as:
* Push button and toggle switches
* Operating Ambient Temperature -30 to 70 C
* Isolation Input-to-Output 4,000 Vrms
* Output Voltage Drop 0.4 volts @ 50 milliamperes
* Output Current 50 milliamperes
* Output Leakage With No Input 100 microamperes maximum @ 30 VDC
* Output Transistor 30 volts breakdown
* Input Voltage Range VDC: 4 16
* Input Current @ Maximum Line mA: 45
* Input Allowed For No Output mA: 0.7, V: 1
* Logic Supply Voltage - Nominal VDC: 5
* Logic Supply Voltage Range VDC: 4.5 6
* Logic Supply Current @ Nominal Logic Voltage mA: 12
* Input Resistance (R1 in Schematic Diagram) Ohms: 300
* Control Resistance (R2 in Schematic Diagram) Ohms: 220
