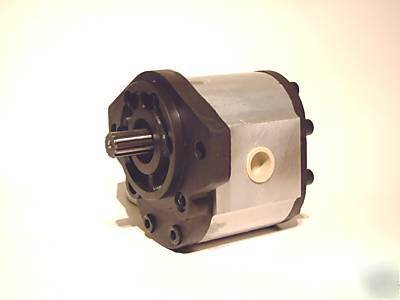

Hydraulic gear pump-group 3- 60CC/rev 2 bolt 13T shaft
HYDRAULIC GEAR PUMP, GROUP 3 60CC/REV-
60cc/rev displacement (delivering 90LPM @ 1500rpm)
2 bolt SAE B mount, 13 tooth splined shaft
Outlet port- 3/4" BSP threaded
Pressure- 180 bar working, 230 bar max.
Speed- 1500rpm rated, 2800rpm max, 400rpm min

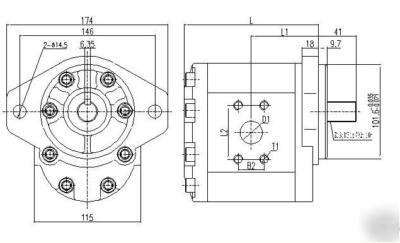

From drawing- dimension L- 158mm, L1- 79mm
