Usb-fpga-breadboard kit: ez-usb FX2 µc, spartan-3 fpga
USB 2.0 FPGA Module complete with Breadboard and Power Supply
* 2 2x32 pin male pin headers (for the connection of the USB FPGA Module and the Experimental Board)
* 2 2x32 pin female pin headers (for the connection of the USB FPGA Module and the Experimental Board)
* 4 1x23 pin male pin headers (for the connection of the Extensions Boards and the Experimental Board)
* 1 Jump wire set for Breadboards
* 1 JTAG connector set (one 8 pin male 180 header, one 8 pin male 90 header, one 8 pin female connector with cable)
* 1 Power connector set (one 2 pin male header, one 2 pin female connector with cable)
* 2 9 pin serial connectors, male
* Wide input range: 8 to 25 V
* Delivers all required voltages using high-efficiency step down regulators:
* 1.2 V @ 1.6 A (3 A peak)
* 2.5 V @ 1.6 A (3 A peak)
* 3.3 V @ 1.6 A (3 A peak)
* I/O voltages Vright and Vtop can be easily and independently set to 3.3V, 2.5V, 1.2V or to an external voltage
* All I/O Ports available on a standard 2.54 mm (0.1 inch) grid via four 1x23 pin connectors (two Extension Board are contained in the kit)
* Two serial interfaces with drivers
* JTAG interface for the FPGA
* Two terminal strips: 2 2 64 5 = 1280 tie points
* One distribution strip: 2 50 = 100 tie points
* Length width: 220 mm 120 mm
* Schematics of the USB FPGA Module (PDF)
* Schematics of the Experimental Board (PDF)
* Drawing of the USB FPGA Module with the dimensions
Top side of the USB FPGA Module
Experimental Board 1.1 (top side)
Top side of the Experimental Board.
Experimental Board 1.1 (bottom side)
Bottom side of the Experimental Board.
Breadboard (2 pieces are included in the Development Kit).

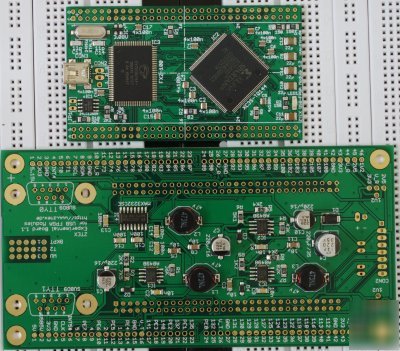

USB-FPGA-Module with Experimental Board and two Breadboards
Experiential Board with USB-FPGA-Module and two Breadboards.
Accessories delivered with the Experimental Board
Accessories to the Experimental Board.
2x32 pin male pin header (2 pieces are included in the Development Kit).
2x32 pin female pin header (2 pieces are included in the Development Kit).
1x23 pin male pin header (4 pieces are included in the Development Kit).
* 140 parts, different colors
