Stuhr bt-10 super sensitive static balancer bench type

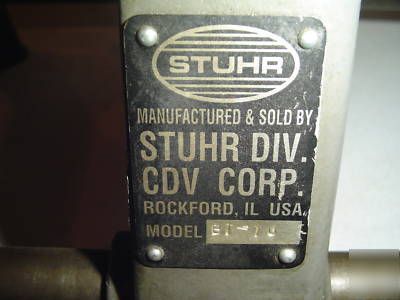

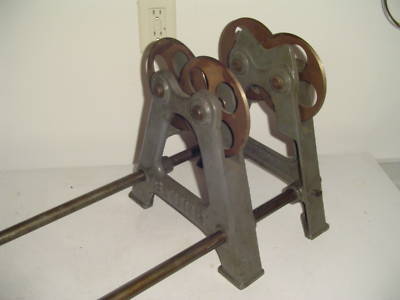

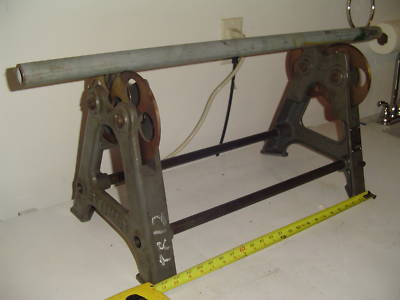

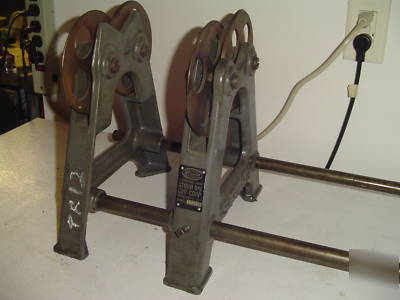

Stuhr BT-10 Bench top super sensitive static balancer.
BT-10 Super Sensitive Bench Type Detects out-of-balance as small as five grains in a 3 radius on a workpiece weighing 1-1/2 als. 200 lb. capacity, 21 max. work dia., 20 max. distance between standards.
Max. Dia. or "swing" of work = 21"
Greatest distance between standards = 20"

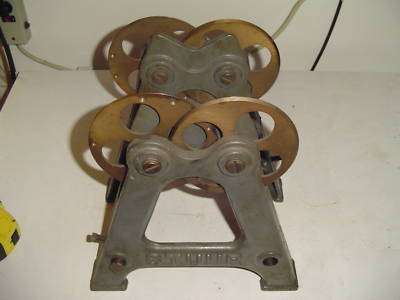

STATIC BALANCING = Imbalance is the uneven distibution of weight. Static balancing is a weighting process to detect the imbalance of circular or cylindrical part which is free to turn on axis. A part to be balanced is placed on the four discs of the Balancing tool. An unbalanced part will rotate until the heavy side is downward. Balance is accomplished by adding counter-weight to the lighterside, or by removing weight from the heavy side. When the part remains motionless when placed an any postion 360 degrees, it is then in static balance.
