Southbend sles/10SC convection oven, electric, single d

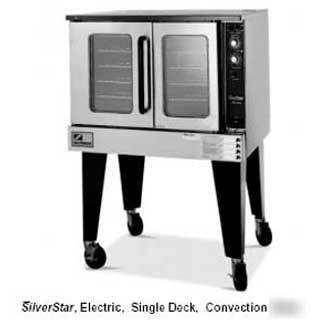

Convection Oven, Electric, Single Deck, Silverstar Series
SilverStar Convection Oven, Electric, single-deck, standard depth, solid state controls, with 26" high legs, s/s front, top & sides, interior light
* 12kW high efficiency heating elements
* Single deck convection oven is 55" in height
* Patented "plug-in, plug-out" control panel - easy to service
* Stainless Steel front, top and sides
* Dependent doors with windows
* Coved, fastener-free, porcelain interior
* Rugged double door with stainless steel door seals
* Soft Air, two speed, 1/2 hp, fan motor
* 11-position rack guides and 5 plated oven racks
* Solid state temperature controls
* Forced cool down fan mode
* Exterior Finish: Stainless steel front, top and sides. Aluminized
* Doors: Dependent doors with windows. Stainless steel construction, heavy-duty welded steel frame and 5/8" diameter full-length hinge pin.
* Electrical System: Terminal connections are located below oven section and are accessible from the front of the oven. These sheath type electrical heating elements located at the rear of the oven function as a single heating unit with a combined rating of 12 kW.
* Rack and Rack Guides: Heavy-duty removable wire rack guides spaced on 1-5/8" centers offer 11 different rack positions. 5 wire racks provided with each oven.
* Blower Fan and Motor: 1/2hp, 2-speed motor, 1725/1140 r.p.m
* Oven Heating: Oven heating is regulated by an adjustable solid state thermostat control. Blower fan circulates air within the cavity "scrubbing" heat to the oven interior for even heat distribution within the cavity. Manual reset high limit temperature control protects the oven from overheat condition.
* Control Panel: Located of front, at right side of oven, away from
* heat zone. Removable panel opens downward for easy servicing.
* Legs: 26" black legs standard.
* Note: Oven cannot be operated without fan in operation.
