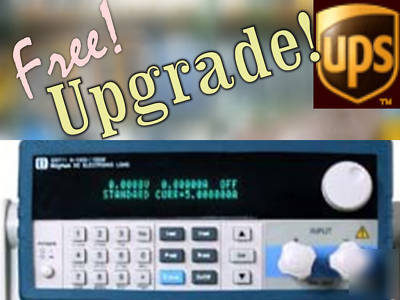

M9711PROGRAMMABLE electronic load loading 150V 30A 150W
* Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CW
* Over current, over voltage, over power, over heat, polarity reversed protection
* High-luminance VFD screen with two lines& four channels display
* Intellegent fan system fan will be automatically initiated according to the temperature
* Soft start time setting, carrying the power supplier according to the voltage value set
* Battery testing and short-circuit function
* Available of dynamic testing and rising edge and falling edge setting
* Supporting external trigger input and output
* External current waveform monitor terminal
* Supporting remote voltage compensation and multidata storage
* Power-on-self-test, software calibration and standard rack mount
* Communication mode: GPIB/RS232/RS485/USB.
Battery Input: 0.1-150V; Max. Mesurement:Capacity=999AH; Resolution=0.1mA; Test Range=1S-16H
Transition List:0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy:+15% offset+10%FS
1mS;2mS;5mS;10mS;20mS;50mS;100mS;200mS;500mS;1000mS Accuracy:+15% offset+10%FS
