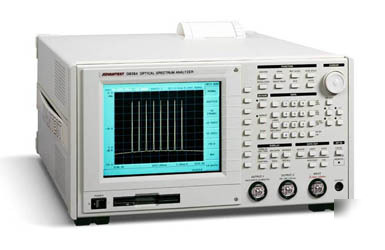

Advantest Q8384-25 optical spectrum analyzer
The Q8384 is a high-end optical spectrum analyzer using a new monochromator developed by ADVANTEST and featuring a high dynamic range and a high wavelength resolution. It offers the world's highest level of performance with a 10 pm wavelength resolution and a 20 pm wavelength accuracy in the 1.55 m band. This enables precise measurement and evaluation of wavelength characteristics.
* Wavelength range 600 to 1700 nm
* State-of-the-art resolution bandwidth of 10 pm
* +/-20 pm wavelength accuracy with option 25
* Polarization dependence 0.05 dB
* Accuracy of resolution bandwidth 2%
* Various power and spectral widths measurements
* Multitude of DWDM analysis features
* Optical amplifier parameter measurements
* Gated measurements for loop testing
