Wing barrier gate retractable flap turnstiles(1 pair)

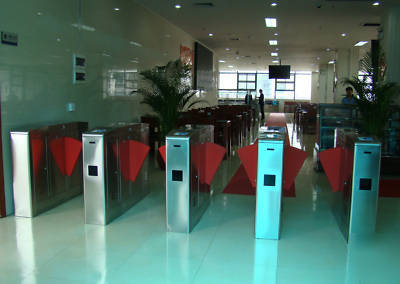

Global KeyAccess retractable flap turnstiles wing barrier gate is a dual-directional controlled facility for high flow passage. It can be controlled by access controller, keypad access controller, push button etc.
Price of $3000.00 is for left & right part, 1 pair. if you need multiple lanes, pls consult with us by emai: ****@globalkeyaccess.com .
Dimensions:1200 1000 300mm( Default, size could be customized ),
Cabinet material:304# stainless steel with thickness 1.2mm
Wing material: Acrylic(15mm, 18mm, 20mm ), customized available.
Surface process: brush finished
Power requirement: AC220V 50Hz or AC120V 60Hz
Working temperature:-30 -60 /-22 -140
Maximum width for a passage: standard 700mm
Communication interface: RS485
3. Fail safe, which means the flap(wing) will be opened when power off (or fail secure, which means the arm will be closed when power off ) .
4. Auto-close function, which means the flap(wing) will be closed after openning when legal time is over if no one pass by.
5. Anti-clamping, which means the flap(wing) will be remained opened if a people standing in the middle of the two flaps until (s)he leaves.
6. Tail-after alarm(customized, using infrared detector)
Notice, the two objects passing through interval in between should exceed 1 second(default) otherwise the gate would regard these two objects belong to one person, because people are easily taking big luggage together with when they are travling.
Tail-after alarm default time could only be set up in factory.
7. Wrong direction access alarm, which means gate will alarm if a person tries to enter from left direction when another person presents an authorized card(or any other authorized signal) from the right direction, and vise versa.
8. Illegal invasion alarm, which means the gate will alarm if a people tries to invade when (s)he doesn't present an authorized card(or any other authorized signal).
