Smt smd hot air solder & desolder rework station

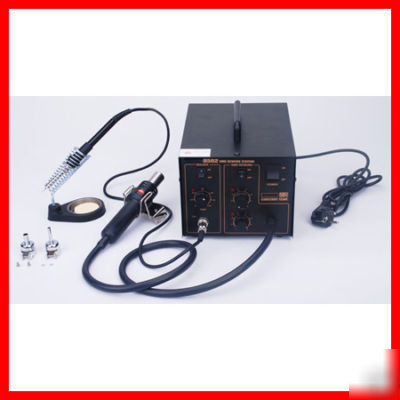

SMT SMD Hot Air Solder & Desolder Rework Station
SMT SMD Hot Air Solder & Desolder Rework Station/ Model #: AT-8502, this product is as good as our other products ever before. Please kindly refer to the details as following:
* Multifunctional and anti-static system, Can remove flat IC safe and effectively, cooperate with the iron (900M-ESD) can deal with any maintain work.
* Two-in-one maintenance system, exertion to overall maintenance efficiency. Save the valuable workspace, every part can be used independently or at the same time, all can remove static system.
* The air flow and the temperature can be adjust greatly and it can solder or de-solder the QFP and SOP?PLCC?BGA type IC.
* Start the machine and delay for 10 minutes, pump produced the wind, temperature rapidly rise and adjust conveniently. Blow cooling system automatically after shut down equipment, and the air current is adjustable, protect heating element?handle?nozzles to prolong the service life of machine.
* Iron input power 24V, prevent the electric leakage form PCB damage.
* The temperature is very accurate and reliable, Light handle suitable for long time operation.
* Iron soldering and rework station is incorporate, easy to use, saving space.
* Performance is at higher rate than price, economical and practical.
* Power consumption: 360W (max)
* Hot Air Temperature: 100 C~480 C
* Tip of Iron: 200 C~480 C
* Leakage Voltage of Iron Tip: <5mV
* Standard Iron Tip: AT-900M
* Outer Dimensions (W x H x D): 187 150 245mm
* 1 hot air rework station
* 1 stand for hot air gun with screws for fixing on the table
* 1 A1130 and 1 A1124 nozzles
* 2 extra screws and 2 washers
