Nsk nakanishi high speed air jig grinder planet 550

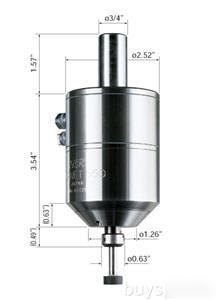

Nsk Nakanishi High Speed Air Jig Grinder Planet 550
HIGH SPEED AIR JIG GRINDER PLANET 550 50,000~65,000 min-1(rpm)
PLANET 550 : 50,000~ 65,000 min-1(rpm).
Planet 550 Jig Grinder Collet 1/4" (CH5-6.35), 1/8" (CH5-3.175) : 1 pc. each
Collet Nut (K-218) : 1 pc. Intake Air Hose (K-257) : 7 mm x 6 ft
Exhaust Air Hose (K-258) : 8 mm x 3 ft Replacement Grindstone Grit #80 0.63" x 0.39" (PG-03) : 5 pcs., 0.47" x 0.39" (PG-01) : 2 pcs., 0.47" x 0.27" (PG-02) : 3 pcs.
Anti-swivel Bar Pin Wrench (K-222) : 1 pc. Wrench (10 x 10) : 1 pc.
Grindstone Arbor (PV-70) : 1 pc. Filter Joint (FJ-03).
Motor Speed is 50,000~65,000 min-1(rpm)
Use with compact compressor (2.2 kw)
Best for the internal grinding of small diameter ( 0.12"~ 2.76")
Mount on boring head available from market.
Most suitable for deep hole grinding. Capable of grinding up to a depth of 2.36" with a bore of 0.55" or more.
Most suitable for jig grinding by mounting on a boring head due to minimum rotary ring resistance.
Capable of grinding min. bore of 1/8" to Max. 2.76".
Usable with a compact compressor of 3HP output.
Low noise level due to exhaust air recovery.
Collet : Standard size 1/4" (CH5-6.35), 1/8" (CH5-3.175)
Special size (CH5-[][]) : 2.35 mm, 1/8", 1/4", 0.3~ 6.0 mm (in 0.1 mm increments)(Optional)
Special Grindstone Arbor for Slot : 1.65", 2.05", 2.44" (Optional) Simple replacement of chuck and grindstone arbor.
Speed 50,000~65,000 min-1(rpm)
Air Consumption 8.30CFM (71PSI)
Exhaust Air 8.0 mm (O.D.) 3 ft
Processable Diameter 0.12"~ 2.76"
Max. Grindstone Diameter 0.63"
