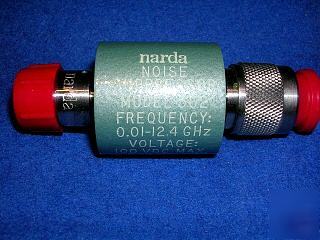

New narda noise suppressor model 562 .01-12.4 ghz
Model: 562 50 OHMS DC Voltage: 100Volts DC
Insertion Loss: Less than 0.1 db at 1GHz / Less than 0.5 db at 12.4 GHz.
The Narda 562 is a Professional Noise Suppressor with a DC Block on Both the INNER and OUTER Connectors. The DC Capacitors have a Maximum DC working Voltage of 100VDC. The working RF Frequency Range is from 10MHz to 12.4GHz. The 562 is a very practical and useful item to protect expensive test equipment like Spectrum Analyzers from DC Voltages, and also to eliminate 50/60Hz earth loops and other interference from DC to around 1MHz.
Connectors: N Male + N Female
