Kondo 12"X48"cc universal cylindrical grinder '86

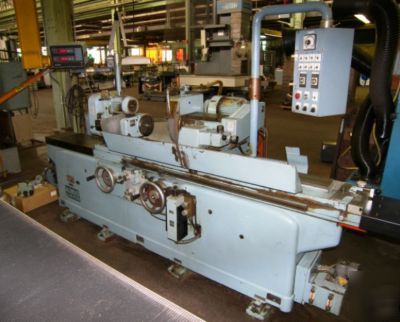

Preowned 12" x 48"cc KONDO (Japanese) Universal Cylindrical Grinder, Model: Gloss-N-1200-H-TS, S/N 4162 (New 1986)
Maximum grinding diameter (with a new wheel)
Rapid movement stroke (hydraulic)
Feed by handwheel (on diameter): one division
one turn
Maximum/Minimum automatic cross feed amount
Maximum/Minimum traverse cut (at stroke end)
Maximum/Minimum plunge cut cross feed speed
Traverse stroke per one turn of handwheel
Table swivel angle: counterclockwise direction
clockwise direction
Automatic hydraulic table traverse speed, infinitely
Spindle speeds, infinitely variable in two ranges
16" diameter x up to 3" wide x 8"
1,800 m/min (max: 3,000 m/min)
0.000098" (.0002" on diameter)
Hydraulically actuated or manually operated longitudinal table traverse (via rack and
Hydraulically actuated infeed of the grinding wheelhead
Plunge Cut or Traverse Cut grinding selector switch
Spark out (0 to 60 seconds) timer for use at the completion of the wheelhead crossfeed
(for use during plunge cut grinding)
Traverse counter: Used to allow spark out during the traverse grinding
Table dwell and traverse speed adjustment knobs
Full automatic cycle grinding capability including rough and fine grinding settings
and rapid advance and retraction of the grinding wheelhead
Combination live/dead center for workhead spindle
Table swivel adjustment knob with dial indicator
Tailstock with diamond tool holder for dressing the grinding wheel
ACU-RITE III two-axis digital readout
(1) Table mounted single point swivel wheel dresser holder
External coolant pump and tank
External hydraulic pump and tank
7.37 H.P. 3/60/230-460 volt wheelhead motor
Machine is wired for 230 volt operation
Approximate Dimensions (Machine Only:
