Yuasa precision radius and angle dresser 550-001 w/case
YUASA RADIUS AND ANGLE DRESSER
RETAILS IN J&L OR MSC @ $2,199.44
* Positive setting of diamond to absolute center with special gage included with dresser
* Simple, fast and accurate radius setting; no height gage or other setup aids required
* Radius set on grinder by measuring over two pins or by inserting gage block
* Inside or outside radius determined simply by sliding dowel pin to the right for concave and left for convex
* Four by 90-degree graduation in full 360-degree circle
* One push/pull knob for radius and angle control and for safer and faster operations
* Setup and dressing time reduced to a minimum
An extremely accurate and versatile unit for use on all o.d., i.d. surface grinding operations. At no time are the hands near the point of contact. Knob "a" controls radii and knob "b" controls angular movements. All moving parts are lapped. It has adjustable gibs. Gage block setting for grinding precise radii. Easy, fast, accurate radius setting. Radius is set on the grinder by measuring over the two pins or by inserting a gage block, for direct reading. Inside or outside radius is determined by using either the left or right hand pins.
Model 550-001; weight lbs/(kg) = 23 (10.4); max diameter of wheel = 12"; convex radii = 0-1 5/8" (6"**); concave radii = 1/32" - 1 5/8" ***(6"**); tangent travel either side of center = 2"; center line of tool = 3.4"

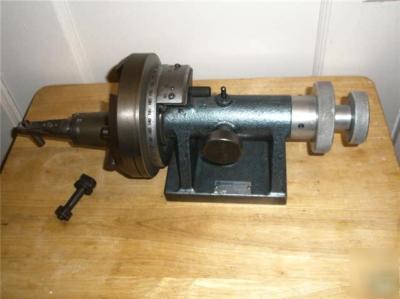

There are some marks on the tool as show in pictures but they
It comes in the original woden case as shown in picture.
