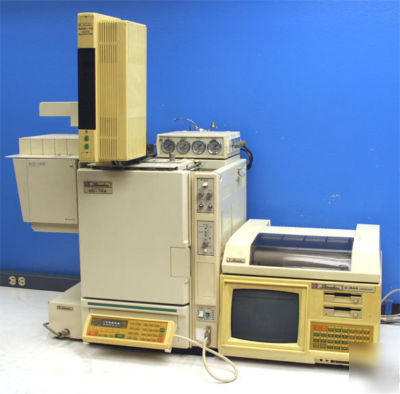

Shimadzu gc-14A all purpose gas chromatograph system
- MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC - MHZ ELECTRONICS INC. - CALL BRENT - 1-866-MHZ-ELEC -
Shimadzu Corporation GC-14A Analytical Gas Chromatograph
Shimadzu GC-14A Gas Chromatograph
* Electrical Requirements: 115 Volts AC, 50 60 Hz, 2200 vA
Shimadzu AOC-1400 Automatic Liquid Injection System
* Electrical Requirements: 100 115 Volts AC, 50 60 Hz, 100 vA
* Electrical Requirements: 50 60 Hz, 150 vA
Used, powers up, everything looks good
The GC-14A Gas Chromatograph is a compact solution for difficult analyses with few compromises. The GC-14A uses only 16 of bench space while accommodating up to 4 detectors and 4 injectors. There is full access to either side of the instrument to install valves or other hardware for multi-dimensional applications or specialized systems. The GC-14A also ensures high productivity through automation accessories, including the ideal sample injection system for up to 100 samples using the AOC-14/1400.
The GC-14A is compatible with all of the Shimadzu Chromatopac Data Processors and Shimadzu EZChrom . The GC-14A also may be controlled by the C-R7A data processor or by EZChrom GC.
* Five stage multi-linear programming
* Independent injection port/detection port heating
* All major injection options: split/splitless, split only, direct wide column, cool on-column
* All major detectors: FID, TCD, clean ECD, FPD, FTD, PID and more
* Built for expansion and customization
* Unique AOC-14/1400 auto-injection system with injection parameter control for 6, 12 or 100 samples.
* Dimensions of Column Compartment: 230mm W x 140mm D x 360mm H
* Length of Columns to be Accommodated: Stainless Steel Column 10m x 2; Glass Column 3m x 2; Capillary Column 100m x 1
* Range of Temperature Setting Temperature: -80 ~ +399 1 C step
* Range of Temperature Setting Rate of Temperature Rise: 0 ~ 40 C/min. 0.1 C step
* Range of Temperature Setting Constant Temperature Hold Time: 0 655 min 0.1 C step
* Range of Temperature Setting Program Stages: 5 Stages Max.
Range of Temperature Control (With Power Voltage of 100 Volts):
* Range of Linear Temperature Increase: 30 C/min 150 C or less; 20 C/min 250 C or less; 10 C/min 330 C or less; 5 C/min 399 C or less
* Lower-Limit Temperature: When INJ and DET temperature is 300 Celsius, room temperature +15 Celsius; When INJ and DET temperature is 150 Celsius, room temperature +10 Celsius **Additional cryogenic equipment is required for controlling at lower temperatures than those above.
* Cooling Speed: Approx. 9 min to reduce from 399 Celsius to 100 Celsius with room temperature of 25 Celsius; Approx. 14 min for reducing from 399 Celsius to 50 Celsius with room temperature of 25 Celsius
* Range of Temperature Setting: Room temperature ~ 399 Celsius (in 1 Celsius steps)
* Control Accuracy: 0.02 Celsius (Average)
* Control Accuracy: 0.01 Celsius
* Range of Temperature Setting: Room temperature ~ 399 Celsius
* Control Accuracy: 0.1 Celsius (Average)
Sample Injection Port Unit: (Either one of the following units may be provided)
* Single Injection Port Unit: For packed glass column, combination type of glass insert and on-column injection, 1 flow line
* Dual Injection Port Unit: For packed glass column, combination of glass insert and on-column injection, 2 flow lines
* Injection Port Unit for Capillary Columns: Exclusive injection port for capillary analysis
Overheat Protection Circuit (3 Circuits):
1. 450 Celsius fixed independent protection circuit
2. Protection circuit for which the upper-limit temperature can be set via key operation
3. Overheat protection circuit by CPU abnormality detection
1. Four detectors at maximum from among TCD, FID, ECD, FPD, and FTD can be simultaneously installed to the detector oven of the GC main body. Two TCD detectors cannot be set simultaneously.
2. Only two types of detector controllers (except FTD) can be installed simultaneously to the control section of the GC. Another unit should be applied for installing three or more detector controllers, or FTD.
