No. 6-16 barber colman multicycle gear hobbing machine

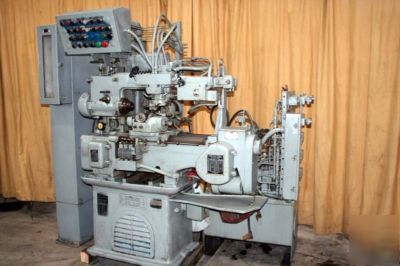

NO. 6-16 BARBER COLMAN MULTICYCLE GEAR HOBBING MACHINE
Motor Driven With 2 HP, 3 Phase, 60 Cycle AC Main Drive Motor And Brake. 1 HP, 3 Phase, 60 Cycle AC Free Standing Hydraulic Power Unit. 1 HP DC Vertical Feed Drive Gear Motor. 1/2 HP, 3 Phase, 60 Cycle AC Rapid Traverse Motor. 3 Phase, 60 Cycle AC Motors For Coolant & Lubrication Systems. With Free-Standing Electrical Control Center. Control Station With Dwell Timer, Hob Rotation And Cam Controls. Cut Between Hob Shift Selector. Full Operators Master Control Station With Cycle, Turret & Cam Speed Selectors, Machine Power Controls. Hob & Workslide Selectors, Collet, Coolant And Main Power Controls.
Multicycle Controls For Square, Horizontal And Vertical Plunge Cycles. Controls. Triple Thread Index Worm. Power Rapid Traverse. High Speed Hob Swivel. Auto Hob Shifter. Hydraulic Collet Chucking. Electric Clutch. Hardened And Ground Bed & Column Ways. Removable Hob Arbor. 180 Turret Attachment. C-Type Overarm End Brace. MD Bijur Auto Lubrication. Change Gears.
Maximum DP & Distance in Steel 1-Out 16 DP 2", 48 DP 6"
Maximum Work Rated Diameter 6"
Maximum Travel of Hob Slide 16.5"
Max. Distance Work Spindle Face to Tail Center 21.75"
Max. Distance Work Spindle Face to C/L of Hob Spindle 18.75"
C/L of Work Spindle to C/L of Hob Spindle 3-1/8"
C/L of Work Spindle to Bottom of Overarm 3"
Maximum Swivel Angle Setting 60 R, 90 L
Vertical Feed Range Depth of Cut .010" - .250"
