New ercolina CE70H3DP hyd.positioning angle roll bender

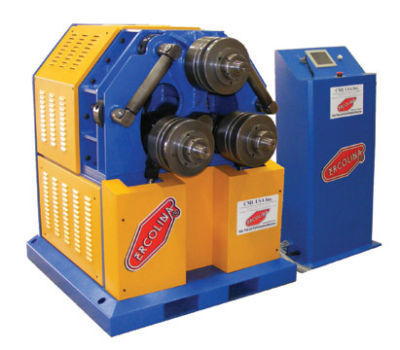

Ercolina Model ER76H3DP Double Pinch Hydraulic Positioning Angle Roll / Section Bender - 3" Pipe Capacity

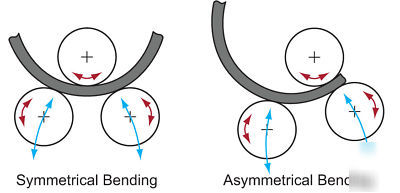

FREE Universal tool set included. Ideal for pre-bend applications; allows materials to feed from either direction. Programmable and independent movement of lower drive rolls. Touch screen control with digital readouts of each shaft position. Dual axis movement reduces tag end length material scrap. Independent axis movement provides for asymmetrical bending and straight infeed of workpiece. All three rolls are individually driven by planetary auto compensating speed reducers for positive feed and efficient torque transmission. USB memory storage with unlimited programs and passes. Control and foot pedal included. Limited lifetime A-frame warranty.
