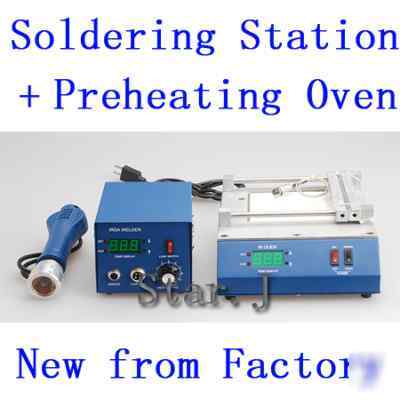

Irda infrared soldering rework station+preheating oven
* This machine selects the infrared highly effective component to give off heat which independent exploration, adopt advanced PID intelligent controlling warm heating technology, controls warm precisely.
* Use infrared heat, easy to cut through, heat proportion, don't have sirocco flow. Don't shift the small component on the PCB board, ensure the welding quality.
* It has 600W heating system, widely to 120x120mm. Can use with the handheld infrared welder T-835.
* Easily operate, can operate it the disc training.
AC220-230v or AC110V 60/50Hz
Preheating chassis temperature adjustable
Board support of the circuit
1. Starting and inspects before starting:
Check the temperature sensor and the power line.
Turn on the power line. Don t use until passing check. (The nixie tube displays the indoor temperature.)
The black switch on the front panel use to control the infrared preheating chassis; press up down can be at 0-450 ,adjust the infrared preheating chassis s temperature. Press the button WARM the infrared preheating chassis starts to work, press COOL it stops working.
2.Operation of preheating PCB board
(1) PCB board s placement and adjustment
According to the PCB board s size, adjust the location of the board support, put the PCB board on the support and fix the screw tightly with hands. Make the temperature measurement head fixed on the PCB board which needs to preheating, use aluminum-foil paper or adhesive paper to stick tightly.
According to the size of PCB board and welding technological requirement, press and button, between 0 and 450 , regulate the output temperature of preheating chassis.
(2) Preheating opening and closure:
Press the WARM button open the preheating chassis about 3-5 minutes, make the temperature be about the setting value then carry on the step operation.
After finishing ,press COOL , the preheating chassis stop working.
Attention This time can t close the power switch, after the machine full cooling then close the power source.
General preheating temperature establishment suggestion when PCB board has lead ,may adjust the infrared preheating chassis temperature to 100-120 ; When PCB board has non-lead, may adjust to 120-140 ; Also may set the different preheating temperature voluntarily according to user's use craft and experience.
3. Machine installation and adjustment:
This infrared preheating chassis heating way includes: The total pressure flow-through heating way and the PID percentage adjustment way, you may adjust voluntarily according to the PCB board s preheating allowance. The general suggestion preheating temperature is lower than 250 , selects the PID percentage adjustment method; The preheating temperature is higher than 250 , use the total pressure flow-through heating way.
1.press power-on, display: C=?
2.press choose 0 or 1,every press the status change one time, C=0 is PID percentage adjustment, C=1 is switching control.
Retail Value > $599! New direct from Factory !
