In-situ level troll 700 level/temperature instrument

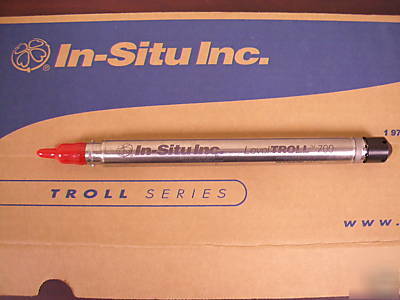

In-Situ LevelTroll 700 Level/Temperature Instrument
This is a gently used In-Situ LevelTroll 700 Water Level/Temperature measuring instrument. This unit shows minor wear and tear and operates normally. Overall, this LevelTroll is in good condition and is ready for the field.
Simple, powerful, water level monitoring. The LevelTroll 700 measures and logs water level and temperature. The LevelTroll 700 has a 0.72 OD titanium housing and long-life, internal lithium battery.
The LevelTroll 700 is SCADA and telemetry ready with built-in MODBUS/RS485, SDI-12 and 4-20mA output communications.
Click for more information on the In-Situ Level Troll 700.
* Operations Temp. Range: -20 to 80 degrees C
* Diameter: OD 0.72 (18.3mm)
* Weight: 0.43 lbs (0.197 kg)
* Output Options: Modbus (RS-485), SDI-12, 4-20mA
* Battery Life: 4 years or 1.5 million readings
* Fastest Logging Rate: 4/sec
* Measurement types: linear, fast linear, linear average, step linear, event and true logarithmic
* Pressure Sensor: silicon strain gauge, titanium construction
* Measurement Range: 15 psig, 0-35 or 0-11m
* Level Accuracy: +/- 0.035 over calibrated temperature range
* Resolution: +/- 0.005% or better
* Temperature Accuracy: +/- 0.1 degree C
* Temperature Resolution: 0.01 degree C
