> 36FT incline conveyor portable w/ onan 7.5 genset
36FT incline conveyor portable w/ onan 7.5 genset
This 36ft portable incline conveyor was used to load cargo containers into a DC-10 aircraft. It was stored in a hangar and was serviced on a regular basis. We purchased this item when the company went out of business a few months ago. It can be used for a wide variety of applications which require material to be moved either up or down-ground level up to 10 feet. More details below...

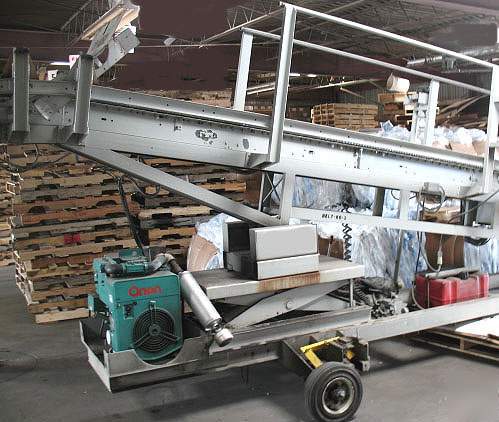

(side view) (Scissor lift-back end)
The lowest position of the conveyor output (pictured on right) is approx. 6ft. Scissor lift raises platform to height of approx. 10ft. Move material either up or down (has forward & reverse). More below...
The photo above left shows back/high end of conveyor. There is a fold down plate at the top of the conveyor. Right photo is Onan 7.5 GenSet generator-Model#7.5JB-1BR/96AD/Hertz=60/RPM=1800/Single phase KW=5/KVA=6.3/Three phase=7.5/KVA=7.5/ Amps 120/240=23, 127/220=25, 254/440=12, 277/480=11. We started the generator and it ran great! More below...
The 36ft conveyor is easily transported on the work site via forklift, tug, or pick up via tow bar.
Forward/Reverse/Stop controls are located on each end of the conveyor. Although, not visible in the above photos-this unit is equipped with high powered lighting-for work in the dark. The bar with brush pictured above right was used to sweep snow off of containers as prior to loading in aircraft. More below...
(Belt control pane-front) (Belt control pane-side)
(Retention bars cut-off) (8" 80-3 belt)
