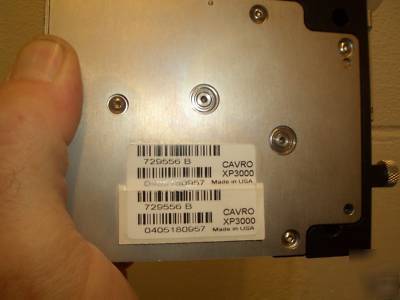

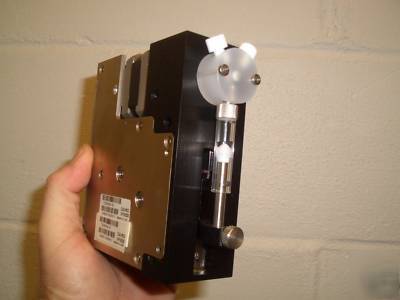

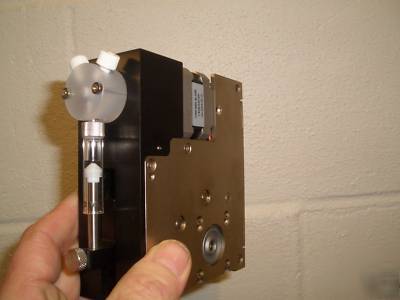

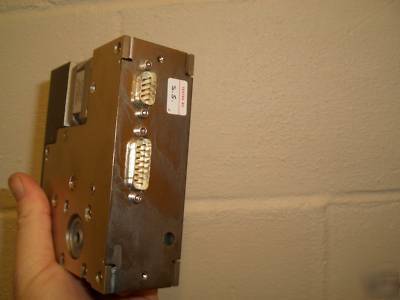

Tecan cavro XP3000 syringe pump module
Tecan Systems Cavro XP 3000 is the industry standard in compact high-performance syringe pumps. Controlled by an external computer or microprocessor, the Cavro XP 3000 automates pipetting, diluting and dispensing operations with excellent accuracy and precision over a wide range of speeds using a variety of syringe sizes.
Rack and pinion drive with quadrature encoder and home sensor flage; step loss detection
50 L, 100 L, 250 L, 500 L, 1.0 mL, 2.5 mL, 5.0 mL
120 3-port, 90 4-port, 90 3-port distribution, T-valve, Y block
<250 ms between adjacent ports
1/4-28 or M6 tubing, 1/4-28 screw fitting for syringe
Programmable ramps, cut-off velocity, backlash comensation, plunger speeds, delays and loops, change speeds on the fly, terminate moves, diagnostics, absolute or relative positions, EEPROM
3,000 increments to 24,000 increments when using microstep-enabled firmware
1.2 seconds - 20 minutes/full stroke depending upon syringe size and tubing
<0.05% CV within run at full stroke (for 250 L syringe and above) using deionized water
<0.1% CV within run at full stroke (with 50 and 100 L syringes) using deionized water
<1.0% deviation from expected at full stroke
Up to 15 pumps can be addressed individually
Data terminal and OEM protocol
Safety and Regulatory Compliance
Tecan Systems operates a manufacturing facility with an ISO 9001 and QSR compliant quality system certified by Underwriter's Laboratories, Inc.
