New nida model 130E electronics test trainer console

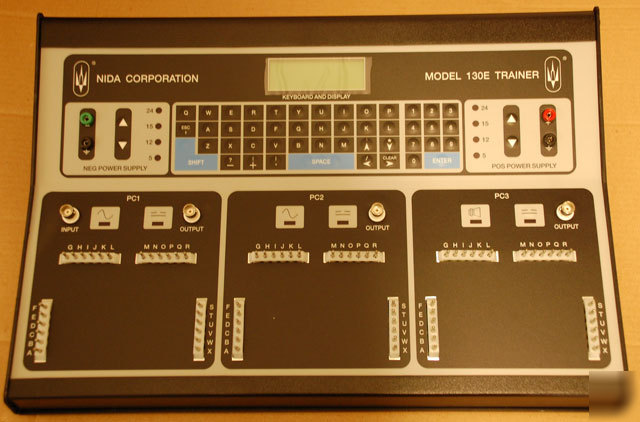

Nida Model 130E Electronics Test Trainer Console NEW
This product is a Nida Model 130E Trainer Console
This item is new and in an open box. The plastic protector is still on the LCD display. This item comes with what is shown only. Nothing else is included in the sale of this unit except what is pictured. If you have any questions about this item, please ask before purchasing.
The Nida Model 130E Console functions as the primary platform for electronic experiments performed in Computer Assisted Instruction (CAI) or text based curriculum. The 130E serves as a current limited power supply for NIDA 130 printed circuit boards (experiment cards). Discrete voltages are used to activate the experiment cards allowing students to check, align, and troubleshoot operational electronic circuits using standard laboratory test equipment.
* Fully automatic operation in CAI mode through student computer USB or serial port.
* Supports automatic, manual, remote, and multiple fault insertion.
* Built-in and auxiliary connections allow signal input/transfer between card positions.
* Multifunctional bubble-press keypad controls for manual operation mode.
* Automatic alarm sounds is malfunction is detected and display panel indicates symptom.
* Built-in speaker for tone and radio signal recognition.
* 20x4 character back lit liquid crystal display show selected mode, keypad input signals, and trainer status.
* Self-cleaning contacts to ensure a proper connection with each experiment card installation.
115 VAC (0.6A max) or 220 VAC (0..3A max), 50/60 Hz switched controlled & primary fuse protection.
0 to -24 volts DC with selectable voltages and current up to 1 ampere.
0 to +24 volts DC with selectable voltages and current up to 1 ampere.
DC Power supply meter ranging from 0 to 25 volts.
Dual 12 VAC at 1 ampere maximum.
* Communications Link: USB or Serial (9600 baud rate with stop bit and parity check).
NOTE: USB communication requires Universal USB Host.
