New jb dv-6E eliminator vacuum pump in box

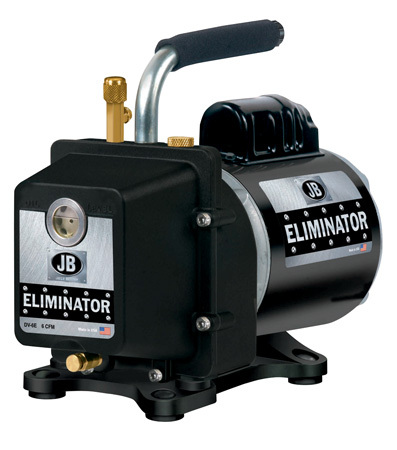

JB DV-6E Eliminator Vacuum Pump
The Eliminator Series is manufactured in the USA to JB's rigid quality standards. The Eliminator series pumps carry a 24 month Over-The Counter warranty and are available in 3CFM, 4 CFM, or 6 CFM models.
Eliminator Series pump highlights include:
*25 Micron Field Tested (Thermistor Gauge Reading)
Improved Wider Stance Feet for Better Stability
Check Valve Prevents Oil Backflow during Power Failure
16 Ounce Oil Capacity for good contaminant absorption and easy oil changes. See JB Vacuum Oil
Low profile rocker switch helps prevent damage and accidental shut off . O-Ring seal and hand tight design help keep your oil changes quick and clean .
Four Point Feet offer a wider stance for better stability on uneven surfaces
1/2 HP Motor: 1/2 HP, 115 volt, 60 HZ, 1725 RPM
Free Air Displacement (LPM): 6 CFM (1701pm)
Intake Ports (Male Flare): 1/4" x 3/8"
Evacuation Rates - the "CFM Wars": It's true! The capacity of a standard 1/4"ID hose is limited to 3/4 (0.75) CFM. And that's only if you remove the valve core depressors from your hoses AND Schrader valve cores from the system's high and low side access valves. Thus, evacuating from both high and low sides, you'll max out at approximately 1.5CFM. Standard 1/4" charging hoses are also not designed for vacuum applications, so much as charging & testing.
