Ac power supply military apu avionics 400HZ 400 hz 15KW

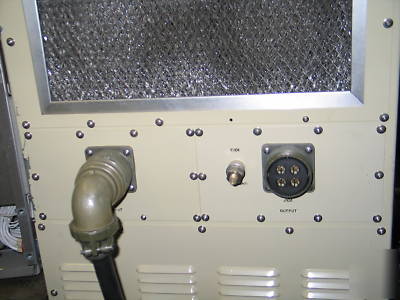

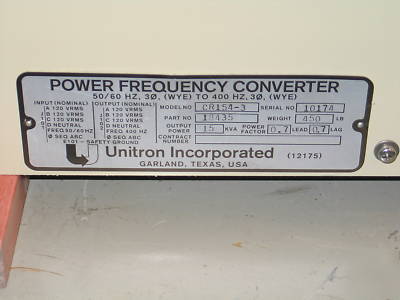

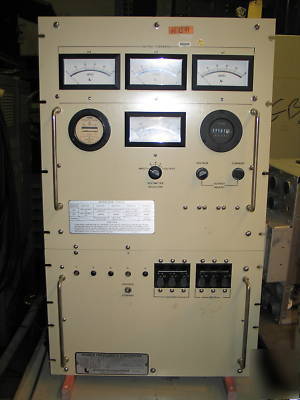

AC Power Supply Military APU Avionics 400Hz 400 Hz 15KVA. Unitron model CR154-3. Input power is 208, three phase wye, output is 208/115 three phase wye at 45 amps/leg. Switch mode, SCR power stage. Output voltage is variable from 0 to 220 VAC. Output current is also variable from 0 to 45 amps. Center lower output meter shows either input voltage or output voltage on phase A,B and C (switch selectable). Three top meters display output current for each phase. In very nice condition, has both input and output cables, although, in the picture only one is shown. Comes with a wheel around rack, about 5' high. Email zip for a freight quote.
