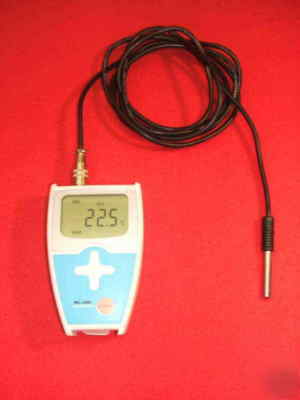

Digital temperature data logger and recorder
Check and log temperatures, dates and times then download the results to a PC to analyse.
This is a remarkable piece of equipment used all over the world to accurately log temperature results in many different industries and hobbies, from food production to reptile keeping.
It will log the date, time and temperature of each individual point and can record a massive 16,000 points storing them for you to retrieve later via a PC. This Data Logger is supplied with everything you need including a waterproof and rustproof sensor on a 2 metre long cable allowing you flexibility on where to place it.
Simply connect to a PC and set the total length of time or, select how often you wish the Data Logger to record the temperatures. Starting the recording process is very straight forward. Once the Data Logger has been configured via a PC it can be disconnected from the PC and taken to the recording location. Then with a simple press of a button on the front of the Logger it will start to record the temperatures as per your requirements.
The Data Logger can also operate its logging functions while still connected to a PC via the USB cable. It will send the data back live as it records it to be read from the PC screen.
To retrieve the data simply plug the Data Recorder into a PC USB port using the supplied USB cable. Then using the supplied software, which is compatible with Windows XP and Vista you can view, save or print the data. The data can also be exported to a Word document in the form of an easy to read line graph
The Data Logger is battery operated and is supplied with one already installed which makes this device very portable and ready to use very quickly. The battery power will last for over a year and a half before needing to be changed, which can be easily done by opening the battery compartment. There is an onscreen display indicating the battery strength giving you plenty of warning. The Data Logger will also draw power from the USB cable when its plugged into a PC instead of using the battery.
This portable, waterproof (IP65) and durable device is used in various applications around the world to accurately log temperatures. Used in areas such as Heating, Cooling, Ventilation, Labs, Food Production and Food Transportation. This device is also ideal for closely monitoring the temperature in animal enclosures. This is a fantastic piece of equipment for keeping an eye on situations that require close monitoring of environmental temperatures.
The Data Logger is also supplied with a separate secure wall mounting protective cage. The cage can be screwed to a surface if required using any of the 4 fixing holes. The protective cage also has the function to allow a padlock to be fitted so that the Data Logger unit can be left securely in an area without any supervision while recording.
A temperature reading can be obtained at any time by simply pressing the button on the front of the logger. You will also be able to take a maximum and minimum reading by pressing the button again.
* Software: Windows XP and Vista
* Battery (Already Installed)
* Temperature Measuring Range: - 40c to +70c
* Recording steps: every 2 seconds to 24 hours
* Sensor: NTC, 2 Metre Length, Water & Rustproof
* Recording capacity: 16000 points
* Operating temperature: -30c to +50c
* Operating Humidity: 15% to 85%
* Safety waterproof Level: IP65
* Battery: 3.6v Lithium, 2400 mAh, AA sized
