Mcp BR2822 10KHZ lcr lcz inductance capacitance meter

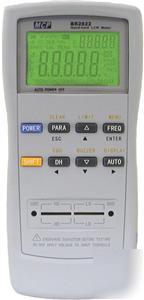

MCP High Precision LCR/LCZ Meter, BR2822
The MCP BR2822 is a micro-processor controlled handheld LCR meter with high accuracy & resolution & low power consumption. It can measure 6 parameters and they are inductance, capacitance, resistance, impedance, dissipation factor and quality factor with basic accuracy of 0.3% & 0.01% resolution.
This professional meter will fulfill the measurement needs of various component manufacturers & maintenance technicians.
Hand-held and low power consumption
Primary and secondary parameters dual display
0.3% basic accuracy, resolution 0.01%
3 display modes: Measured value, absolute deviation & percent deviation
4 alarm modes: NG, P1, P2, P3
Built-in 4 bins comparator : NG, P1,P2 and P3
Equivalent circuit mode: Parallel & Series
Open / Short multi-frequency Zeroing
170mAH rechargeable battery or 12V/150mA adapter
4-Terminal Kelvin Test Clip leads
9V rechargeable battery (installed)
