5 ton adjustable gantry crane (custom built - LS007)
We custom build all of our cranes for your needs.
Standard specifications for our 5 Ton Adjustable Crane are as follows:
* 10000# (5Ton) lift capacity. Available lift capacities up to 10 Ton.
* Standard height is 9 ft to 12 ft (under the beam). Adjustments are in 1 ft increments. Other increments can be made at no extra cost. Available heights up to 20 ft.
* Standard width is 10 ft (outside dimensions). Available width up to 20 ft.
* Mechanical lift (Has to be raised with floor jacks or come-along). Lifting eyes are provided.
* All nuts, bolts and hitch pins are provided. Bolts Provided are Grade #8

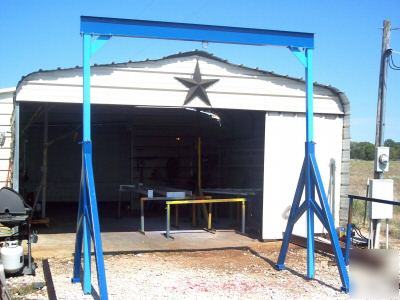

* Standard Gray,Blue,Red,Black,or Green paint. White and Yellow are available for an additional cost. I also do multiply colors as seen in the first picture crane for an additional $40.00
* Standard weight is approximately 975#.
* To custom build your crane, it may take up to 10 business days. Most Units are ready in 5 to 7 days
* For any questions or specific needs, please contact LONE STAR 380 at (***) 345-9532 WE'LL BUILD YOUR CRANE TOGETHER!!! All cranes are built with new mateial and meet Osha Guidlines and spec's. Please feel free to call and ask anything.
THANK YOU SO MUCH FOR TAKING THE TIME TO VIEW THIS LISTING. THANK YOU We Have Relocated Our Company to Dallas Texas thank you for your intrest in out product
