Mediator 36 hp kohler pressure washer 8.5 gpm 4000 psi
2 Man Pressure Washer Series
* Kohler Commercial Engines 12.75-36 HP
* Electric Start on all Units
* Udor USA Gear Drive Industrial Pumps 4-13 GPM
* Two man ready on all units 4-13 GPM*
* Super compact frame convertible to skid
* 13-16" tires for easy mobility

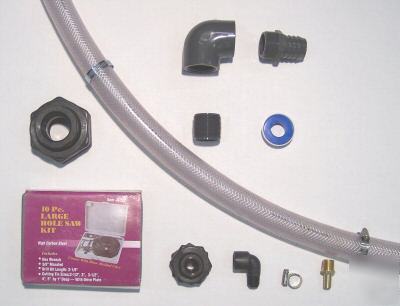

* Tank install kit included on tank fed models
Mediator "Experience is built in"

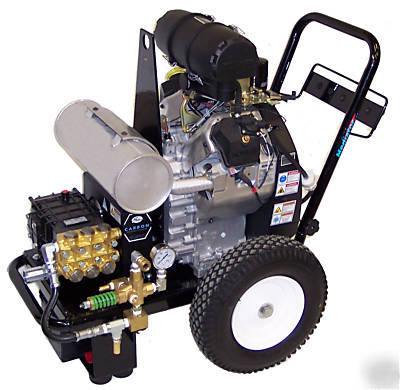

Mediator X2 36 HP Kohler 8.5 GPM 3000 PSI
2 man 4.25 GPM @ 4000 PSI Each**
Custom Builder of Commercial Cleaning Units up to 32 GPM
* Factory Direct Value! manufactured by WaterResearchUSA (we are the manufacturer).
* To enhance ease of use this machine is built with premium features not found in standard pressure washers.
* All pressure washers are assembled in U.S.
* All replacement parts can be purchased through us.
* Free Tech Support (***) 524 4647
Features back by years of in the field experience!
* Heavy Duty 1 1/4"Tubing Cart
* 16" Tires for Easy Maneuverability (most have 10" tires)
* Grommets Holders for Pressure and Soap Tips
* Battery Holddown included (battery, not included)

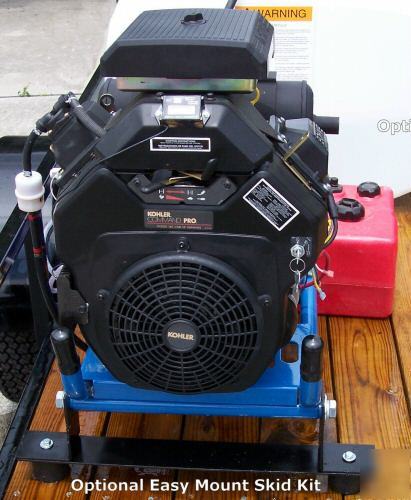

* Convertible to skid with skid kit sold in our store
* 36 Horsepower Kohler Industrial Engine
* Hydraulic valve Lifters (no valve adjustments)
* Cast Iron Sleeve for longevity
* Ball Bearings on both sides of the Crankshaft (shown below)
* Quick Connect Fuel Line for Easy Gas Tank Set Up (Using stand boat deck tanks or any tank with 1/4" connections)
* Udor Industrial Plunger Pump
* Oversize bearings for extreme conditions
* Gates Carbon Polychain Belt Drive
* Pressure Relief Valve (Prevents pump/engine damage in event of unloader failure)
Unloader: Controls Flow to Gun and Bypass of Water
* Operates 1 man at up to 8.5 GPM @ 4000 PSI
* Operates 2 men at 4.25 GPM 4000 PSI each

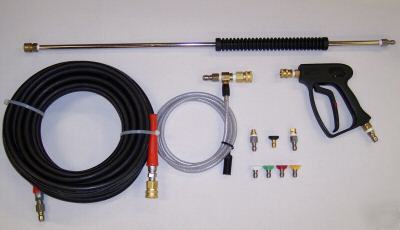

* Relax Action! Suttner ST1500, by far the most comfortable gun on the market.
* 36" Zinc Plated Steel with Quick Connect for easy Nozzle turning and Storage
* 50' Goodyear Neptune 3/8" Hose with Quick Disconnects
* After 13 Years of Cleaning Goodyear Hoses still reign as the best for longevity
Pressure Nozzles: For High Pressure Cleaning
* 0 degree for long distance cleaning
* 15 degree for maximum impact at close range
* 25 degree for general cleaning
* 40 degree for wide area cleaning and rinsing (my favorite)
* 20% downstream injector with quick connects
* apply chemical without pump damage
Soap Nozzles: Activates Injector For Chemical Applications
* 65 degree (for low chemical spraying up to 12' high
* 0 degree (straight stream for high spraying 30 feet +) no one I know of includes this with their units
Flow/Pressure Options: Price may change + -
** There will be a pressure difference of +- 5 % when in dual man mode. But will reach full pressure in 1 man mode
Don't forget to look in our store for the full line of Mediator X2 Pressure Washers
If unit is picked up in Knoxville, TN a 9.25% state sales tax will be added to the total.
See Demo Video Below Featuring a 10 GPM 3000 PSI Mediator X2
