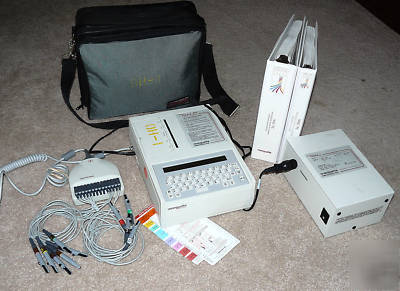

Marquette medical mac pc portable ekg ecg machine
WE ALSO HAVE THE PM-2 EURO CHARGER FOR THIS UNIT AS WELL. CHECK OUT OUR STORE FOR MORE! My Stores Logo
Estimated Retail Price: $799.00
MAC PC High technology in a small, inexpensive portable
The MAC PC acquires all 12 classical EKG leads simultaneously with Marquette's New Acquisition Module, which, attached directly to the patient, digitizes the EKG waveforms and sends the data to the unit via a standard, inexpensive telephone type cable. This method of acquisition sets a new standard for signal quality.
In 15 seconds, the MAC PC performs a complete 12-lead analysis of any EKG. The analysis is based on the same proven 12SL program once available only with room-sized EKG systems. The program contains age-specific criteria and accurately analyzes EKGs from patients of all ages, from newborns to adults. Continually fine-tuned by 28 of the world's leading electrocardiographers, the 12SL program processes nearly one in every four EKGs taken in the U.S. today. it is backed by a still-growing data base of over 5 million EKGs and has earned the trust of thousands of cardiologists worldwide.
The MAC PC writes both reports and waveforms with Marquette's solid-state Direct Digital Writer Except for the paper drive, this writer has no pens or other moving parts. The result is extremely reliable performance-no ink to run out, no pens to burn out, nothing to go out of adjustment-and distortion-free waveforms. Waveforms may be written in three- or six-channel formats.
But despite its power, the MAC PC is extremely easy to use. Just connect the electrodes and push one button. The instrument does the rest. it collects 10 seconds of EKG data from all 12 standard leads, performs a full analysis of morphology and rhythm using Marquette's 12SL analysis program, and prints a report in the format of your choice. The report includes heart rate, PR interval, QRS duration, P-R-T axis measurement, QT and corrected QT. In addition, the MAC PC will
store up to 20 EKGs in solid state memory.
Equipped with a modem, the MAC PC can communicate with thousands of other Marquette electrocardiographs and EKG processing systems throughout the U.S. and in many other countries. This networking capability enables you to transmit EKGs to another Marquette electrocardiograph for overreading or to a MUSE system for overreading, serial comparison, or storage. Because the MAC PC is battery operated, you can take the unit anywhere-even to a patient's home-and transmit ECGs via standard or cellular phones for quick overreading or a second opinion. You can send EKGs from almost anywhere, even from patients' homes for quick overreading or a second opinion. You can even take the MAC PC home with you for receiving and overreading EKGs.
The optional modem also equips the MAC PC to receive Holter reports from Marquette Holter systems. The Holter report includes summary statistics, interpretation and 10-second rhythm strips.
The specially built 2400 baud modem can be added at any time, so even if you have no need to transmit and receive EKG information today, the MAC PC assures you of that capability in the future.
Wherever you use it, the MAC PC can make you part of the growing Marquette ECG communications network.
The MAC PC offers additional flexibility with an Analog Output option. This feature enables you to continuously monitor as many as three leads of EKG data on an oscilloscope. During monitoring you may recall and printout 5 seconds of the three displayed leads or 2.5 seconds of all 12 leads at operator programmable intervals or on
