Inficon tek-mate leak detector leak detector 705-202-G1

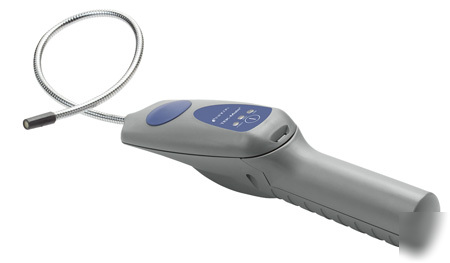

Tek-Mate Refrigerant Leak Detector Leak Detector 705-202-G1
Inficon Tek-Mate Refrigerant Leak Detector with proven D-TEK heated diode sensor technology
The Inficon Tek-Mate Refrigerant Leak Detector incorporates an electrochemical sensor consisting of a ceramic substrate, doped with a reactive element, and maintained at high temperature by a built-in heating element. When a halogen-bearing gas contacts with the hot surface, the chlorine, fluorine, or bromine atoms are separated from the molecule and ionized. This causes an electrical current to flow within the ceramic to a collection electrode at the center. Careful selection and application of the ceramic permits the INFICON sensor to provide similar responses to CFCs (such as R11 and R12), HCFCs (such as R22 and R123), HFCs (such as R134a) as well as replacement blends (such as R404A and R410A) so that the operator need not determine the refrigerant in use, nor remember to set a selector switch.
Furthermore, when searching for HFCs, the instrument does not have an exaggerated response to traces of chlorinebearing vapors which are frequently present.
* 0.4 oz./yr. sensitivity to CFCs, HCFCs, and HFCs
* Automatically compensates for changing background contamination
* Variable intensity audible signal and single flashing LED help locate leaks fast
Includes: Sensor, 2 D-size alkaline batteries, spare filters, and a hard
Specifications: Sensitivity to CFCs, HCFCs, HFCs 0.4 oz/yr. (11 g/yr.)
Controls: 3-position slide switch- off, low sensitivity, high sensitivity
Power: 2 D-size (1.5-volt) alkaline batteries
Contamination adjustment: Automatic
Weight with batteries: 1.54 lb (700 g)
Probe: Chrome-plated flexible metal. Approximate length: 17" (43 cm)
Sampling system: Positive displacement pump
Certifications: CE marking per Safety and EMC. SAE J1627
