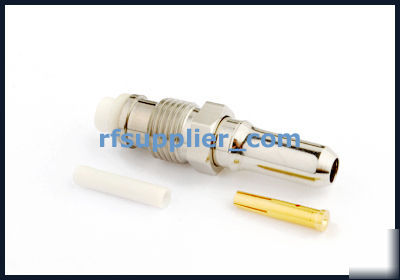

Fme female crimp connector for RG178 RG174 RG316
FME female crimp connector for RG178 RG174 RG316
Temp.range.....................-40 +60 C
Vibration.........................100m/s2 (10 500Hz)
Impedanec.......................75
Frequency Range..............DC 1GHz
Working Voltage...............170V max
Withstand Voltage........... 500V rms
Center Contact................. 10 m
Outer Contact.................. 5 m
Insulation resistance......... 1000 M
VSWR Straight................. 1.20
Right angle ...................... 1.30
Durability(mating)............. 500 (cycles)
shell .......................brass ................................nickel plated
contact pin ........... ..brass ................................nickel plated
elastic contact.......... beryllium or tin brass ....... .gold or silver plated insulator...................PTFE or PE........................gold or silver plated
crimping suite...........copper alloy ........................nickel or gold plated
O-ring sealing ..........6146 silastic..... ..................nickel or gold plated
