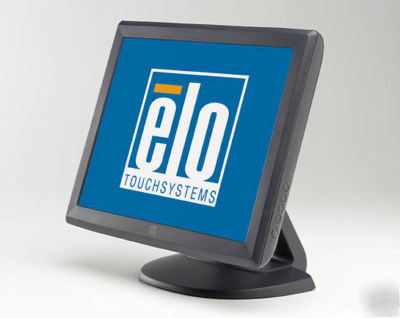

Elo 1515L multifunction 15" lcd desktop touchmonitor
The 1515L touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo TouchSystems. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1515L features a choice of touch technologies: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications; or Acoustic Pulse Recognition technology.
Monitor dimensions (with stand)
1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
800 x 600 at 56, 60, 72 or 75 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
Acoustic Pulse Recognition: 230 nits
Vertical: 60 /55 or 115 total
Internal AC, Optional external DC (power brick)
Operating: 0 C to 40 C (32 F to 104 F)
Actual with stand: 10.6 lb (4.8 kg)
Actual without stand: 7.3 lb (3.3 kg)
16.54" (420 mm) x 14.96" (380 mm) x 10.24" (260 mm)
Typical 30,000 hours to half brightness
North America/Worldwide: UL, cUL ,FCC, CE, Semko, VCCI, IC, C-TICK, MPRII, Argentina S-Mark
Asia: UL, cUL, FCC, CE, Semko, VCCI, IC, C-TICK, MPRII, Argentina S-Mark., BSMI, CCC, MIC, China RoHS
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls
Threaded-through mounting holes, under stand
