Cst/berger 5-second electronic total station 56-CST205

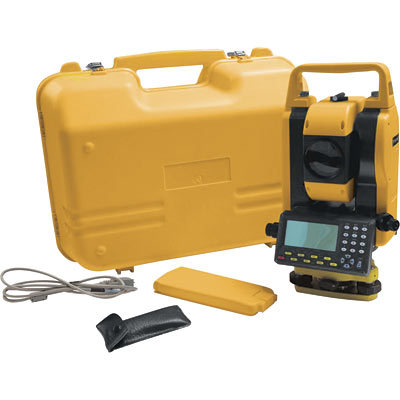

CST/berger 5-Second Electronic Total Station 56-CST205
This easy-to-use 5-Second Electronic Total Station from CST/berger brings a quality and affordable solution to any site. The 5000-ft.-plus range with a single prism makes this instrument perfect for measuring applications like surveying and construction, mapping and GIS, utilities, environmental studies and geomarking. With its superior optics (30X magnification), surveyors can pinpoint the exact spot they want to measure. Easy-to-use onboard software ensures that users have the right application at the touch of a finger. The CST205 also features single axis (vertical) compensation that will make up for tilts on the X-axis. Order starter and staking kits separately, Item#s 377227, 377228 & 377229. Application: Land / site, Display Type: Grapic LCD, alphanumeric, 8 lines of 20 characters, Field of View: 1 degree 30 seconds, Accuracy: 5 second angular, Range (ft.): 5,000, Measures up to (ft.): 5,249 -8,202, Battery Included: Yes, Battery Type: Ni-MH Magnification: 30X Angular accuracy: 5 seconds Compensator type: Single axis EDM accuracy (prism/sheet): (2mm+2ppm x d)mm Measuring range (single prism): 5249ft. (1600m) Measuring range (triple prism): 8202ft. (2500m) On-board data collection (memory): 15,000 points (measured and input coordinate data) Software applications: Coordinate measurement, Point, angle and distance stake out, Offsets, Missing line, Remote elevation, Resection, Area calculation and Stake out line Easy-to-target collimator Data upload and data-transfer through RS-232 data port
