Bliss str-side 2 point variable spd high-prod press

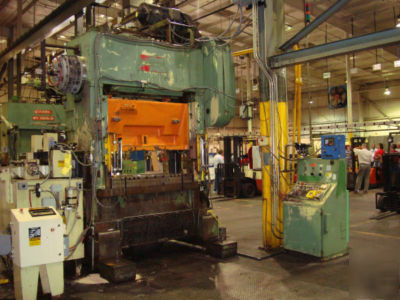

150 TON BLISS (EW) STRAIGHT-SIDE TWO POINT
VARIABLE SPEED HIGH-PRODUCTION PRESS
New 1980, Serial No H-68645, Model HP2-60-36X60
Power Ram Adjustment w/Indicator
Micro-Level Vibration Isolation Pads
Recirculating Oil Lubrication System
Tonnage Capacity........................ 150 TON
Stroke Length........................... 5"
Shut Height To Bed, (SDAU).............. 14"
Ram Adjustment, (Power)................. 4"
Slide Area, L-R x F-B................... 60" x 24"
Bed Area, L-R x F-B..................... 60" x 36"
Window Width............................ 21"
Strokes Per Minute, Variable............ 110 to 220 SPM
Motor Horsepower........................ 20 HP
PRICE: F.O.B. OUR WAREHOUSE............ $79,500.00
