Hp / agilent N1811TL 4-port coaxial switch

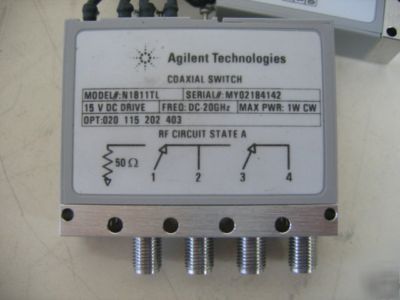

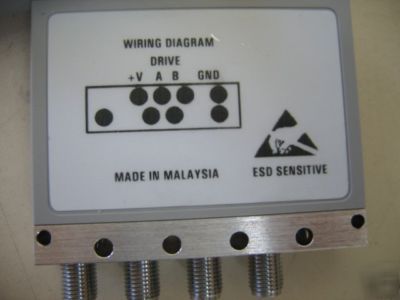

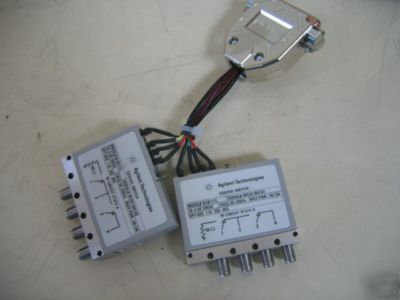

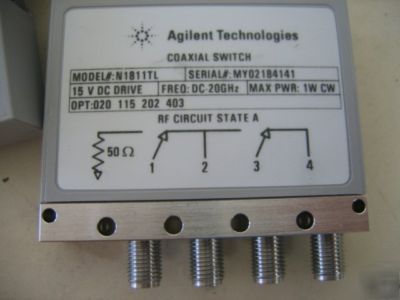

Agilent HP N1811TL 4-Port Coaxial Switch
Description: The Agilent N1811TL latching coaxial switch combines unmatched flexibility of configuration with excellent repeatability, long life, and reliability.
* Terminated 4-port bypass switch
* Frequency ranges available from DC to 2,4,20 or 26.5 GHz
* High Isolation: 67dB at 20 GHz standard, 99dB optional
* Low SWR: 1.30 at 20 GHz standard, 1.23 optional
* Low insertion loss: 0.69dB at 20 GHz standard, 0.53dB optional
Excellent RF repeatability & long life span
* High repeatability: < 0.03dB typical
* Guaranteed performance up to 5 million cycles
* Coil voltage levels 5 V, 15 V or 24 V
* D-subminiature 9-pin connectors or solder lug terminals
* Standard or TTL/5 V CMOS compatible drive
* Optional position indicators and current interrupts.
Working Condition: Presumed Good but Untested (came directly out of working lab)
* Other Comments / Notes: These N1811TL switches have the following options:
* 020: DC-20GHz frequency range
* 202: Solder lug terminals
Warranty: 3-day DOA. (See below for further details)
