Hp 5340A frequency counter, 10HZ-18GHZ, calibrated,nice

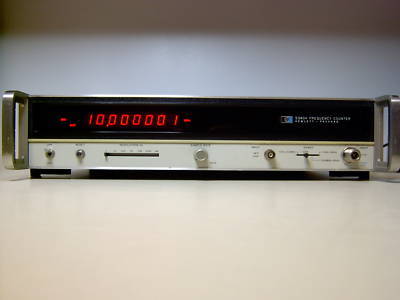

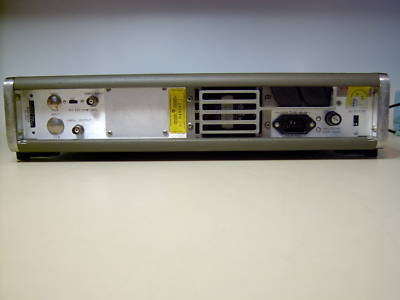

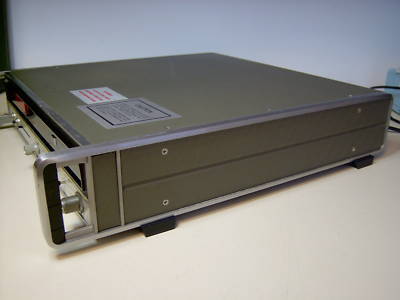

This HP 5340A Automatic Frequency Counter is in excellent physical and electrical condition and was calibrated on May 5, 2010 by a NIST traceable Calibration Lab. It has LED readouts, S/N is 2532A10432. The only accessory provided is a power cord. Some of the features of the HP 5340A are:
Frequency Range: 10Hz to 18Ghz
Sensitivity: -30dbm (10Hz to 500Mhz); -35dbm (500Mhz to 10Ghz); -25m (10 to 18Ghz)
Input Impedance: Input 1; 50 ohms: Input 2; 1M ohm shunted by <25pF
Timebase: 10Mhz, aging rate <3x10E-07
Basic Accuracy: +/- 1LSD +/- time base error
Resolution: Front panel switch selects 1Hz, 10Hz, 100Hz, 1KHz, 10Khz, 100KHz, or 1MHz
